Axle and Final Drive Oil

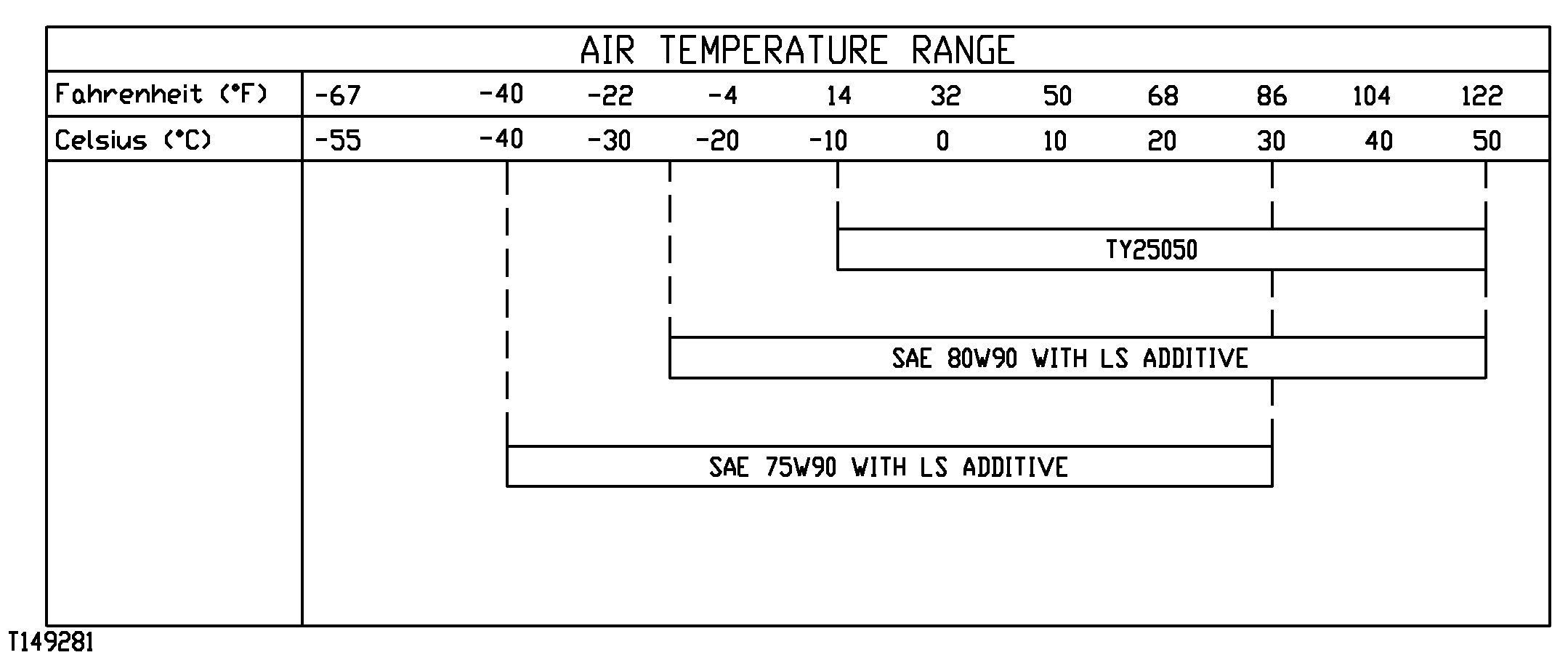

T149281-19-18DEC01

Depending on the expected air temperature range between oil changes, use oil viscosity shown on the temperature chart above.

The following oils are recommended:

• John Deere J11F Gear Oil
• John Deere API GL-5 Gear Oil
• Oils meeting API Service GL-5 (MIL-L-2105B or MIL-L-2105C)
