Inspect Tires, Check Pressure

1. CAUTION: Improperly inflated tires can cause excessive heat build-up, excessive or uneven tire wear, or rim damage, resulting in blowouts.

   Ensure that valve caps are installed.

2. Check for wear and cuts to tires. Consult your authorized dealer if in doubt about the serviceability of a damaged tire.

3. Check tire pressures.

IMPORTANT: In the interest of the drivetrain reliability in the 6x6 ADT's, the maximum permissible difference in tire diameter across axles and between axles is 2%. Failure to adhere to this recommendation could result in premature drivetrain failure. Only factory approved tire sizes are to be used on all machines. Should retreaded tires be used, it is important to ensure that the original tire diameter is maintained and or falls within the 2% guideline.

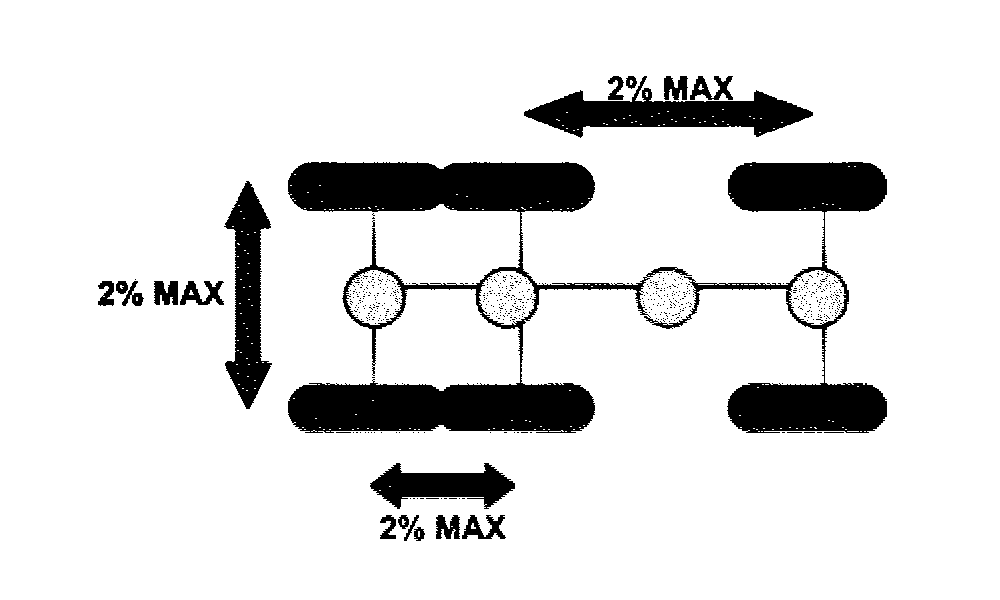

TX1021707-19-20APR07

Maximum Permissible Differences in Tire Diameters

Tires—250D

Item	Measurement	Specification
23.5 R 25—Michelin XADN
Front Axle Tires	Pressure	250 kPa (2.50 bar) (36 psi)
Middle Axle Tires	Pressure	275 kPa (2.75 bar) (39 psi)
Rear Axle Tires	Pressure	275 kPa (2.75 bar) (39 psi)
23.5 R 25—Goodyear RL2+
Front Axle Tires	Pressure	310 kPa (3.10 bar) (45 psi)
Middle Axle Tires	Pressure	325 kPa (3.25 bar) (47 psi)
Rear Axle Tires	Pressure	325 kPa (3.25 bar) (47 psi)
23.5 R 25—Bridgestone VKT
Front Axle Tires	Pressure	310 kPa (3.10 bar) (45 psi)
Middle Axle Tires	Pressure	325 kPa (3.25 bar) (47 psi)
Rear Axle Tires	Pressure	325 kPa (3.25 bar) (47 psi)

Tires—300D

Item	Measurement	Specification
23.5 R 25—Michelin XADN
Front Axle Tires	Pressure	300 kPa (3.00 bar) (44 psi)
Middle Axle Tires	Pressure	350 kPa (3.50 bar) (51 psi)
Rear Axle Tires	Pressure	350 kPa (3.50 bar) (51 psi)
23.5 R 25—Goodyear RL2+
Front Axle Tires	Pressure	400 kPa (4.00 bar) (58 psi)
Middle Axle Tires	Pressure	430 kPa (4.30 bar) (62 psi)
Rear Axle Tires	Pressure	430 kPa (4.30 bar) (62 psi)
23.5 R 25—Bridgestone VKT
Front Axle Tires	Pressure	400 kPa (4.00 bar) (58 psi)
Middle Axle Tires	Pressure	430 kPa (4.30 bar) (62 psi)
Rear Axle Tires	Pressure	430 kPa (4.30 bar) (62 psi)
