Axle Gear Oil

TX1024300-UN-31MAY07

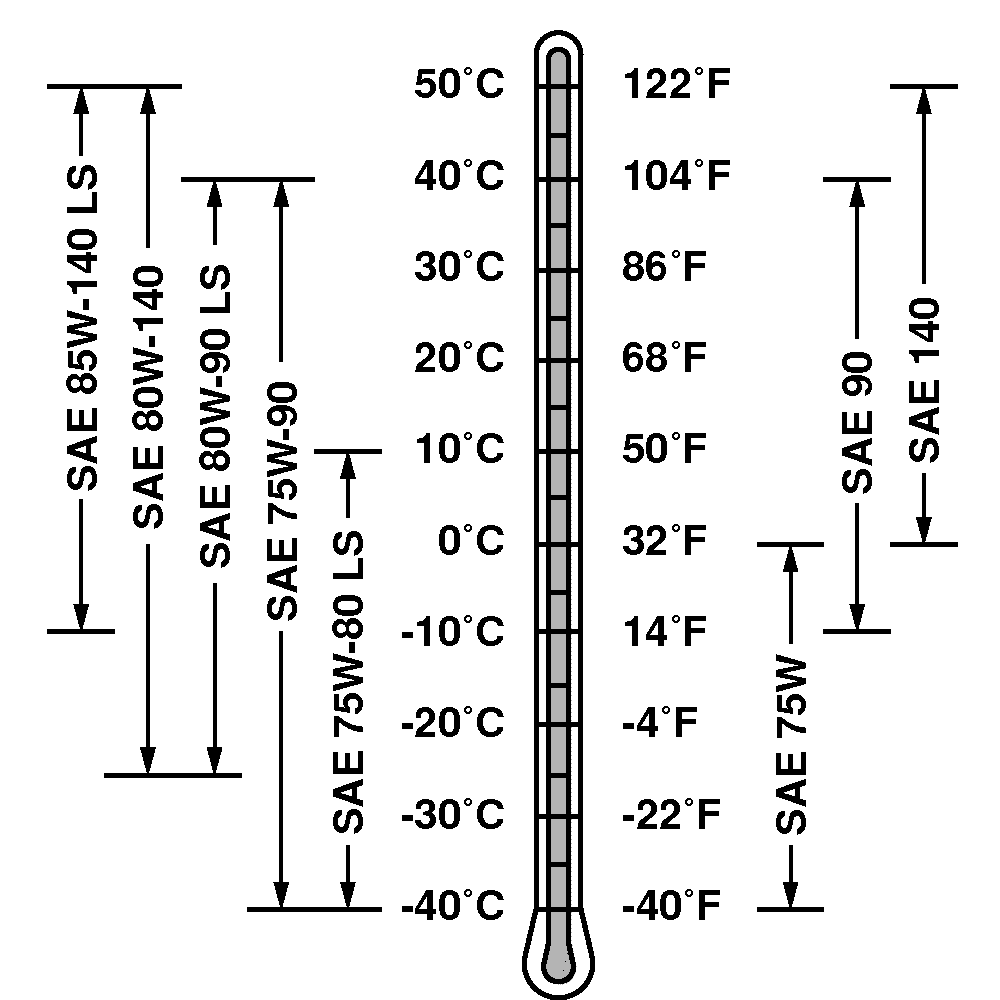

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oil is preferred:

• John Deere GEAR LUBRICANT with Limited Slip Additive

Other oils may be used if they meet the following:

• JDM J11F
• ZF TE-ML-05C
• ZF TE-ML-05D
