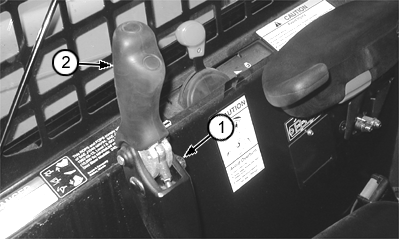

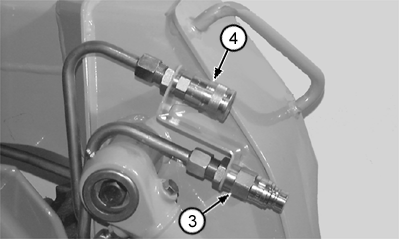

Operating Auxiliary Hydraulics-Hand-Foot Machines1. Turn locking mechanism (1) to right to unlock auxiliary hydraulics handle (2) from neutral position. Turn locking mechanism to left to lock handle in neutral position.2. Pivot handle down toward seat to supply oil to male quick coupler (3). Pulling handle all the way down toward seat will put control valve into detent position to give continuous oil flow to an attachment. The handle will stay in this position until operator moves handle. 3. Pivot handle up away from seat to supply oil to female quick coupler (4), reversing flow. IMPORTANT: Handle must be locked in neutral when auxiliary hydraulics are not in use to prevent overheating of hydraulic oil. NOTE: If handle has not been moved all the way down into detent position, it will automatically return to center position when operator lets go. |
|
