Boom Lock

T199135A-UN-12APR04

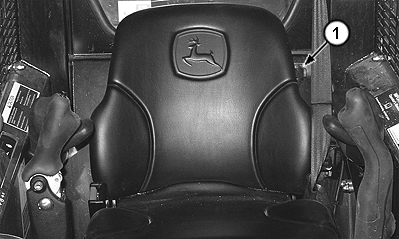

1 - Boom Lock Lever

Boom lock is used whenever it is necessary to leave machine with boom in a raised position.

Locking boom in raised position:

1. Remove any attachment.

2. Park machine on level surface.

3. Raise boom a short distance above boom lock.

4. Slide lever (1) away from seat to extend boom lock to locked position.

5. Slowly lower boom onto lock.

Disengaging boom lock:

1. Raise boom a short distance off of lock.

2. Slide lever toward seat to retract the boom lock to the unlocked position.

3. Slowly lower boom to the ground.
