Replacing Fan and Alternator Belt

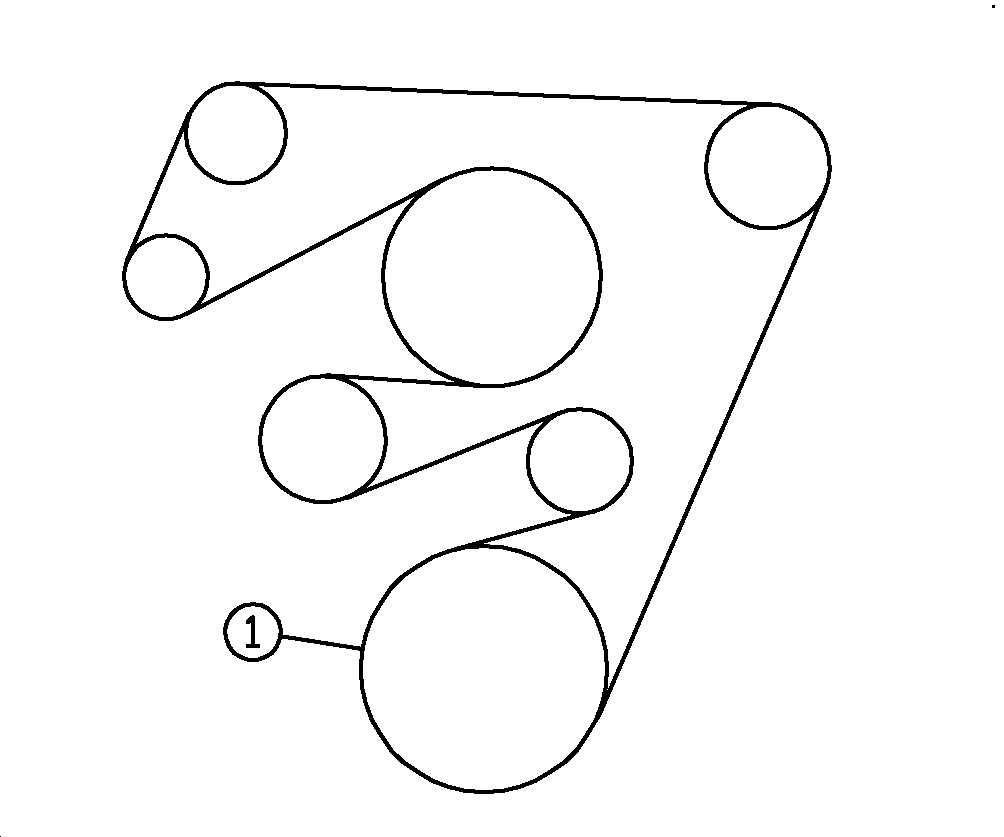

T199065-UN-07APR04

With Air Conditioner

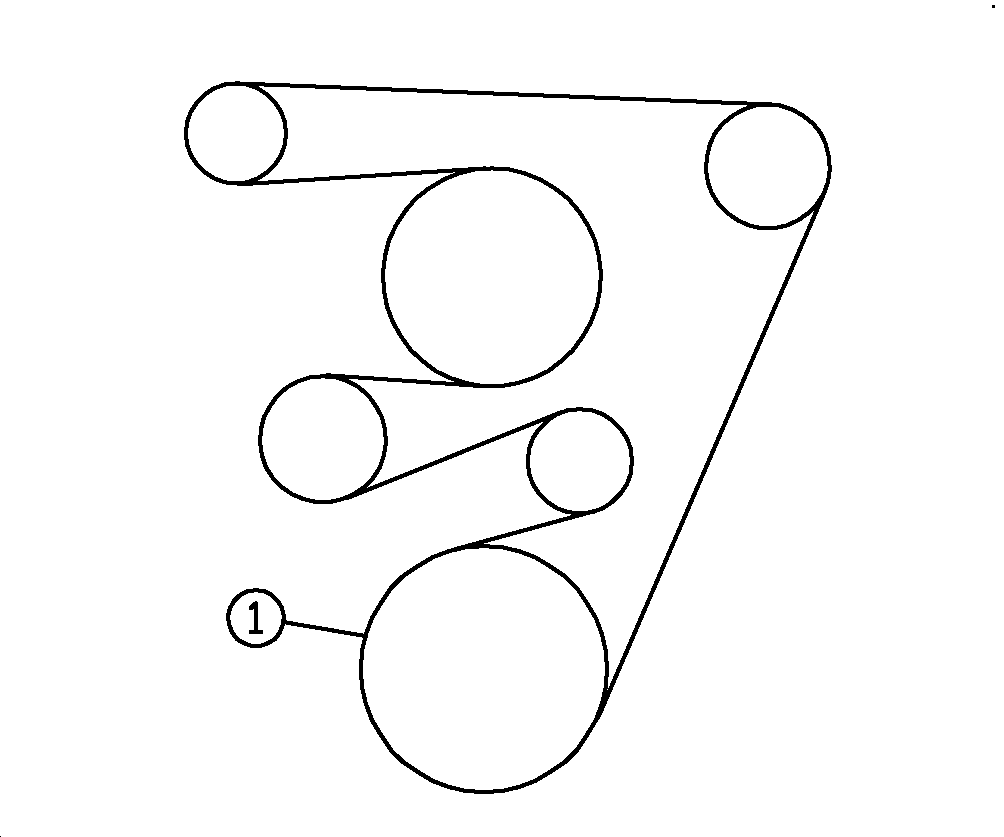

T199066-UN-07APR04

Without Air Conditioner

1 - Crankshaft Pulley

1. Inspect belts for cracks, fraying, or stretched out areas. Replace if necessary.

2. To replace belt, release tension on belt.

3. Remove belt from pulleys, and discard belt.

4. Install new belt, making sure belt is correctly seated in all pulley grooves.

5. Start engine, and check belt alignment.
