Check Radiator Coolant Level

T199047A
T199047A-UN-06APR04

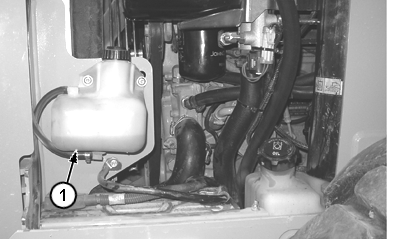

1 - Recovery Tank

CAUTION: Prevent possible injury from hot spraying water. Shut off engine. Remove filler cap only when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

Check coolant level by viewing coolant in recovery tank.

  1. Park machine.

  2. Allow engine to cool.

  3. Open rear service door and engine cover, and remove right side panel.

  4. Check recovery tank (1) coolant level. Coolant should be at least to the ADD mark on the tank.

  5. Remove coolant recovery tank cap to add coolant if necessary.

  6. Install and tighten cap.

  7. Install right side panel.

  8. Close engine cover and rear service door.
