Drain Fuel Water Separator Filter

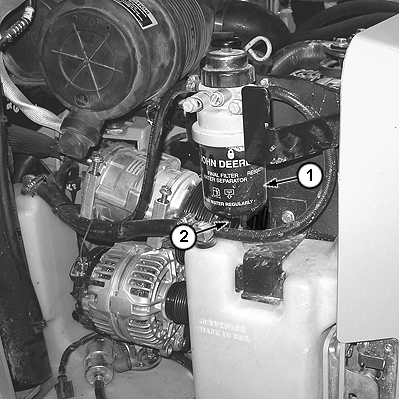

T199185A
T199185A-UN-13APR04

1 - Fuel Water Canister

2 - Valve

  1. Park machine.

  2. Open rear service door and engine cover, and remove left side panel.

  3. Place a small container under fuel water canister (1).

  4. Loosen valve (2) to drain fuel.

  5. When fuel or water has drained, tighten valve.

  6. Install side panel.

  7. Close engine cover and rear service door.

  8. Dispose of waste properly.

VD76477,000007A-19-20070410
