Install PTO Shaft

1.

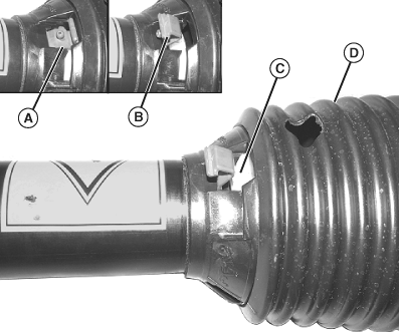

   TCAL46508-UN-12APR13

   Release the shield lock tab (A) using a screwdriver or similar tool and flip it (B) toward the center of the drive shaft.

---




2. Grasp the drive shaft yoke and rotate the inner white ring (C) to release the outer shield (D).

3.

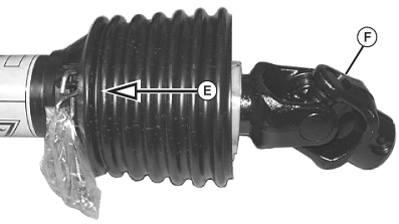

   TCAL46509-UN-12APR13

   Slide the shield (E) away from the yoke (F).

---




4.

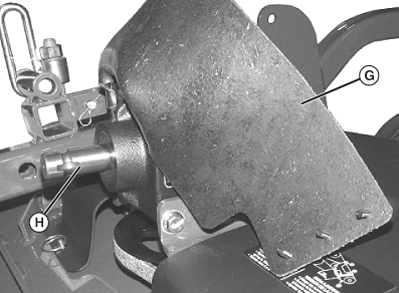

   TCAL46510-UN-12APR13

   Pull back rubber shield (G) on top of mower deck to access the gearbox input shaft (H).

---




5.

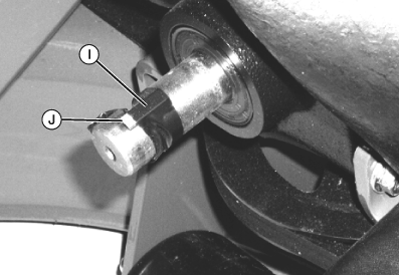

   TCAL46511-UN-12APR13

   Remove tape (I) from gearbox input shaft. Clean shaft with a wire brush. Do not remove shaft key (J).

---




6.

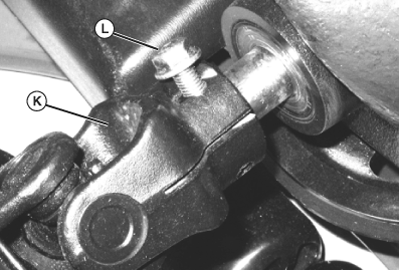

   TCAL46512-UN-12APR13

   Install yoke (K) onto input shaft, lining up key and slot on shaft with the yoke.

---




7. Install M10x50 flange head cap screw (L) from bag of parts into yoke and tighten securely.

8.

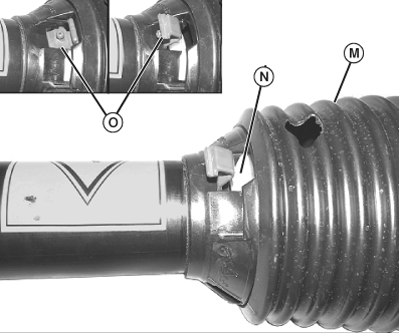

   TCAL46513-UN-12APR13

   Slide shield (M) over yoke, rotate inner white ring (N) and engage tab (O) to lock shield.

---




9.

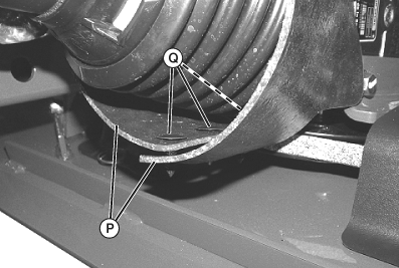

   TCAL46514-UN-12APR13

   Fold the rubber shield (P) around the drive shaft shield and secure with three push retainers (Q).

---




10. Remove plastic bag from each chain on the drive shaft shield.
