Removing Mower Deck

1. Raise mower deck and lock service latches.

2. Park machine safely. (See Parking Safely in Safety section.)

3.

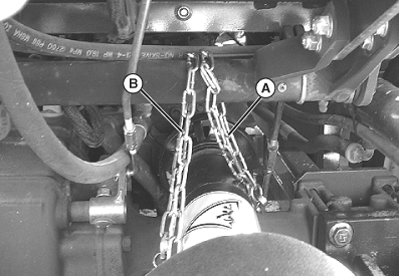

   TCAL46545-UN-12APR13

   Remove the front (A) and rear (B) drive shaft shield chains from the brake cross shaft.

---




4.

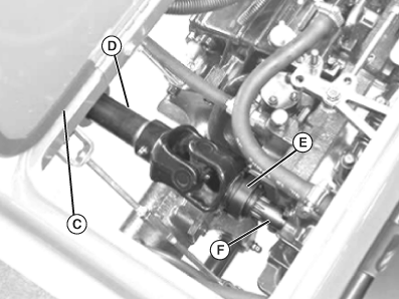

   TCAL46546-UN-12APR13

   Open the service hatch (C) on the machine, and locate the mower deck drive shaft (D).

---




5. Pull forward on the coupler ring (E), and pull the drive shaft off the PTO output shaft (F).

6.

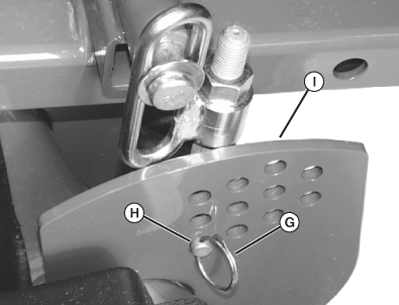

   TCAL46547-UN-12APR13

   Remove the retainer ring (G) from the hanger pin (H), and remove the hanger pin from the adjustment plate (I). Repeat for rear deck hanger on other side of machine.

---




7. Lower mower deck to the ground by pushing forward on machine lift lever.

8.

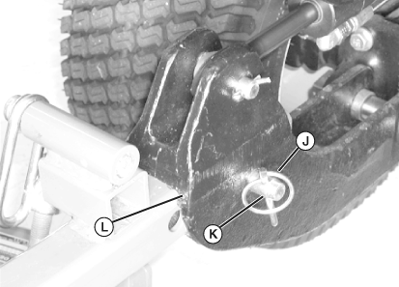

   TCAL46548-UN-12APR13

   Remove the hitch pin (J) from drilled pin (K), and remove drilled pin from the lift arm socket (L). Repeat for other side of machine.

---




9. CAUTION: The machine can become unstable when driving on slopes or at high speeds with front attachment raised or removed. Travel at slow speeds and avoid sudden braking with attachment raised or removed.

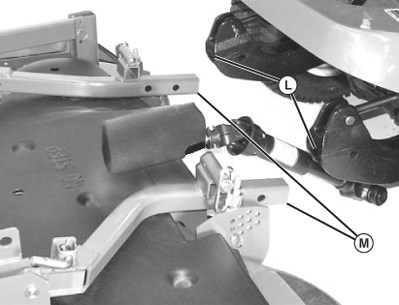

   TCAL46549-UN-12APR13

   Pull the mower deck lift arms (M) from the machine lift arm sockets (L).

---




10. Install the drilled pins into the lift arm sockets and secure with hitch pins.

11. Install the retainer rings back into hanger pins.
