Adjusting Mower Deck Cutting Height (62 Inch)

1. Raise mower deck.

2. Park the machine safely. (See Parking Safely in the Safety section.)

3. Lock the service latch on both of the lift arms.

4.

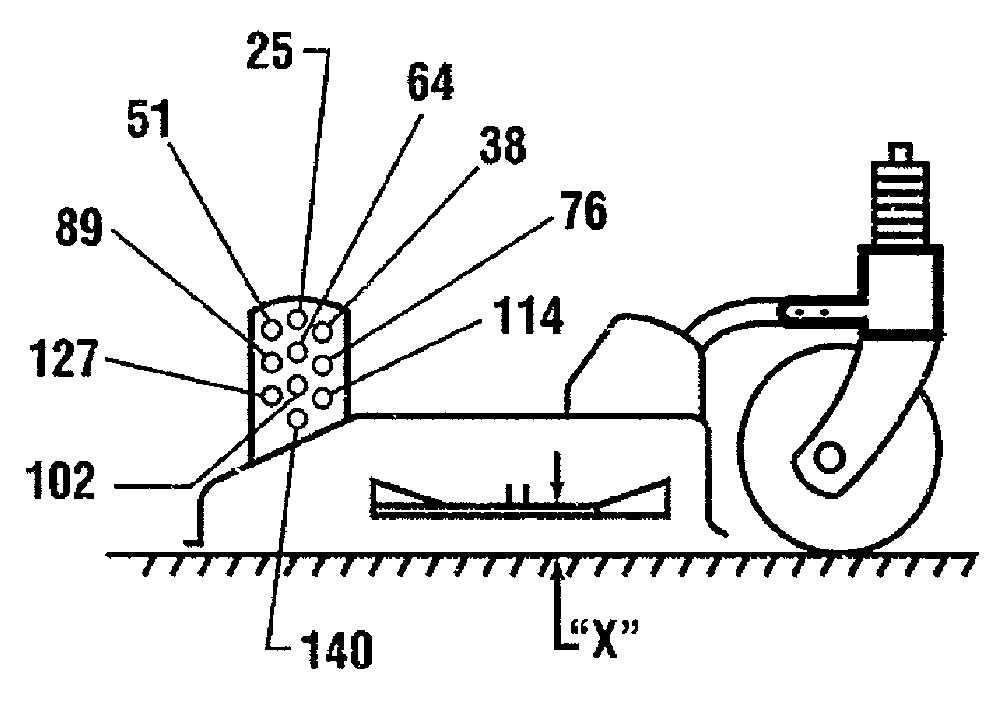

   TCAL46554-UN-12APR13

   Decal of cutting heights.

   Choose the desired cutting height from those shown on the decal on the front of the mower deck.

---




5.

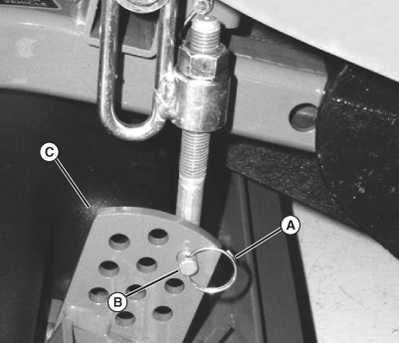

   TCAL46555-UN-12APR13

   Remove the retainer ring (A) from the hanger pin (B) on the rear hanger plate (C) on left and right side of mower deck.

---




6. Move each hanger pin to the correct hole for the cutting height chosen from the decal. Secure both hanger pins with retainer rings.

7.

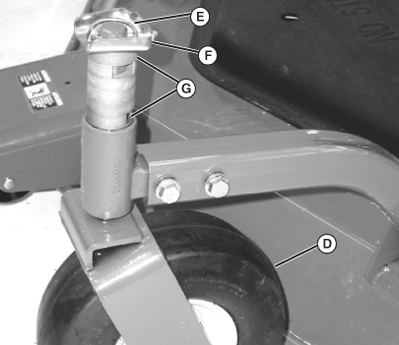

   TCAL46556-UN-12APR13

   Support the caster wheel (D) with one hand while removing the quick-lock pin (E) and spacer guard (F).

---




8. Remove the spacers (G) from the top of the caster wheel pivot shaft.

9.
   TCAL46557-UN-12APR13

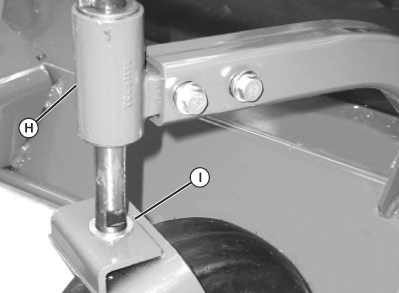

   Lower the caster wheel out of the caster wheel bracket (H), making sure the flat washer (I) stays with caster wheel pivot shaft.

---




10. Position caster wheel bracket (H):

    •

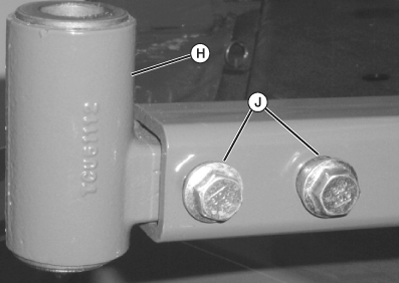

      TCAL46558-UN-12APR13

      If normal cutting height range will be from 25 to 102 mm (1 to 4 in.), position caster wheel bracket (H) in up position.

    ---

    •

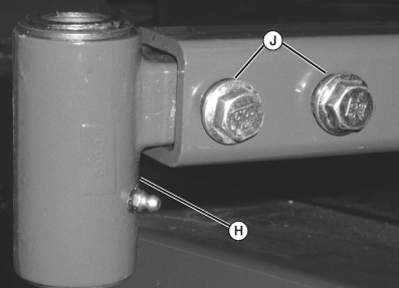

      TCAL46559-UN-12APR13

      If normal cutting height will be from 64 to 140 mm (2-1/2 to 5-1/2 in.), position caster wheel bracket (H) in down position.

    ---




---




11. Move caster wheel bracket to correction position:

    • Remove two mounting cap screws (J), spacers, and nuts.
    • Rotate bracket 180°.



12. Install cap screws (J) but do not tighten completely until caster wheel is assembled and weight of mower deck is back on caster wheel.

13. Install caster wheel back into caster wheel bracket, making sure flat washer (I) remains in place.

14.

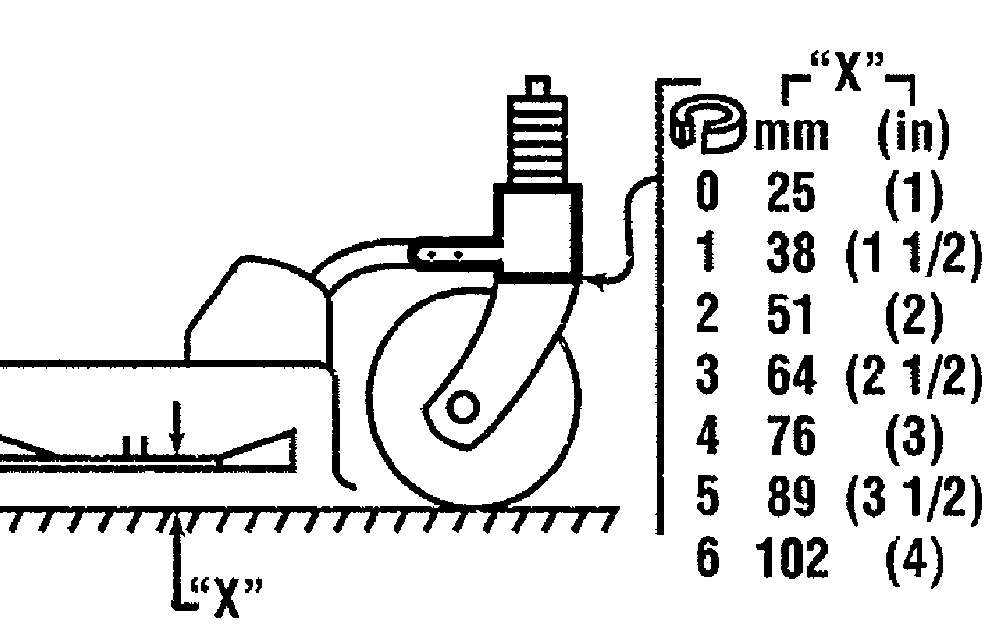

    TCAL46560-UN-12APR13

    Decal (K) of caster wheel bracket in low range position.

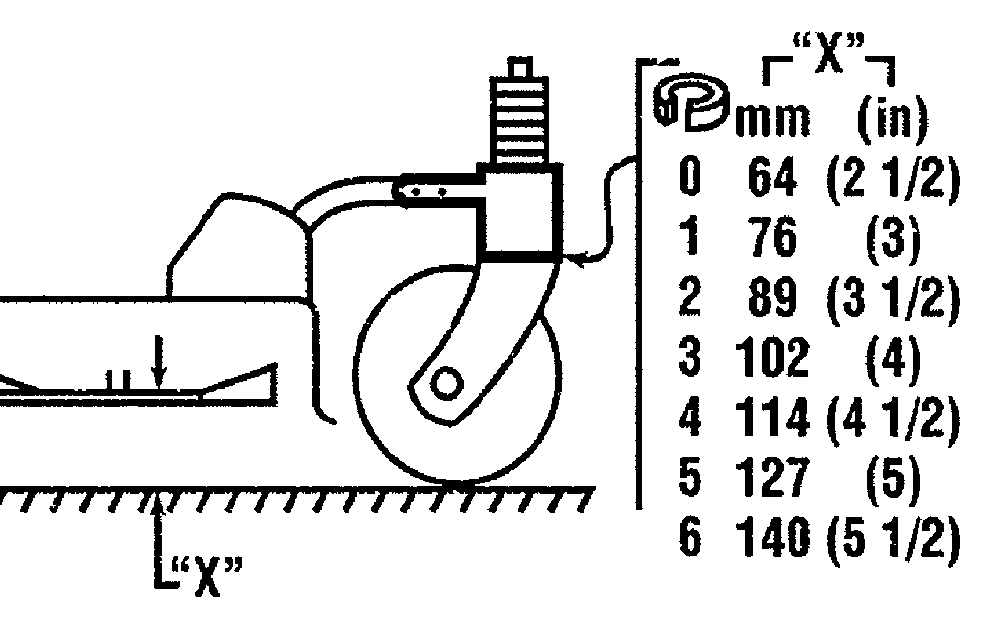

    TCAL46561-UN-12APR13

    Note: Decal (K) of caster wheel bracket in high range position.

    Use the decal (K) on the mower deck to determine the number of spacers needed to set cutting height (X).

---




15.

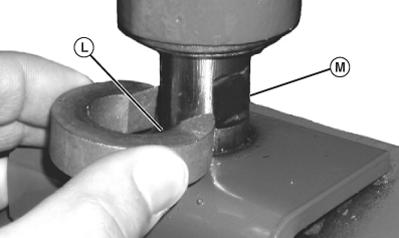

    TCAL46562-UN-12APR13

    Align slot in spacer (L) with the machined groove on shaft (M) and install spacer.

---




16. Place the remaining spacers on the caster pivot shaft above the wheel bracket.

17. Install the spacer guard on top of the spacers and lock in place with the quick-lock pin.

18. Unlock the service latches and lower mower deck to the ground.

19. Tighten cap screws on caster wheel bracket.
