Adjusting Level Front-to-Rear

  1. Raise mower deck and lock lift arm service latches.

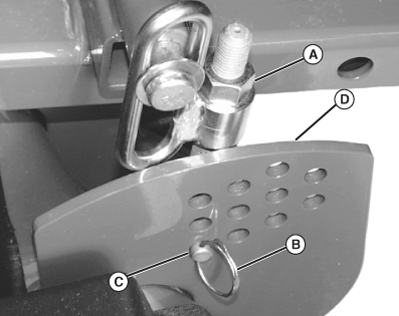

  2. TCAL46566
    TCAL46566-UN-12APR13

    Loosen lock nut (A) on rear hanger.


  3. Remove retainer ring (B) on hanger pin (C).

  4. Remove hanger pin (C) from adjustment plate (D).

  5. While counting the number of turns, adjust the rear hanger up or down to adjust deck height.

  6. Insert hanger pin back into proper hole in adjustment plate (D) and secure with retainer ring.

  7. Tighten lock nut.

  8. Repeat adjustment procedure for rear hanger on other side of mower deck.

  9. Lower mower deck and check front-to-rear level. The blade height should be 6 mm (0.25 in.) higher in the rear. Adjust if necessary.

AP43109,00002A6-19-20130415
