Lubricating Mower Blade Spindles

1. Lower mower deck completely to the ground.

2. Park machine safely. (See Parking Safely in the Safety Section.)

3.

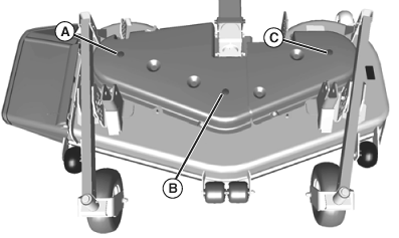

   TCAL46569-UN-12APR13

   Lubricate the three mower deck spindles through the holes in the belt shield (A, B, and C) using recommended grease.

---




4. Pump grease gun 6-10 times for each spindle. A small “pop” may be heard as air is forced past the seal. Over-greasing will not cause damage. However, over-greasing is not recommended because grease will be thrown by the blades.
