Removing and Installing Belt Shields

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

  1. Rotate mower deck for service, or remove mower deck from machine.

  2. TCAL46580
    TCAL46580-UN-12APR13

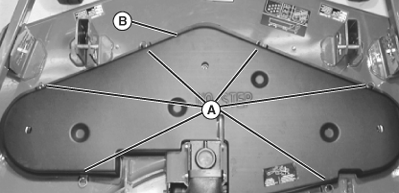

    Loosen six captured nuts (A) securing belt shield (B) to mower deck.


  3. Lift belt shield off the attaching bolts.

  4. Install belt shield and tighten six captured nuts (A).

  5. CAUTION: Fingers and loose clothing can get caught in rotating parts. Do not operate machine without all shields installed.

    Replace or rotate mower deck for operation.
