Changing Gearbox Oil

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Remove drive belt and gearbox.

3.

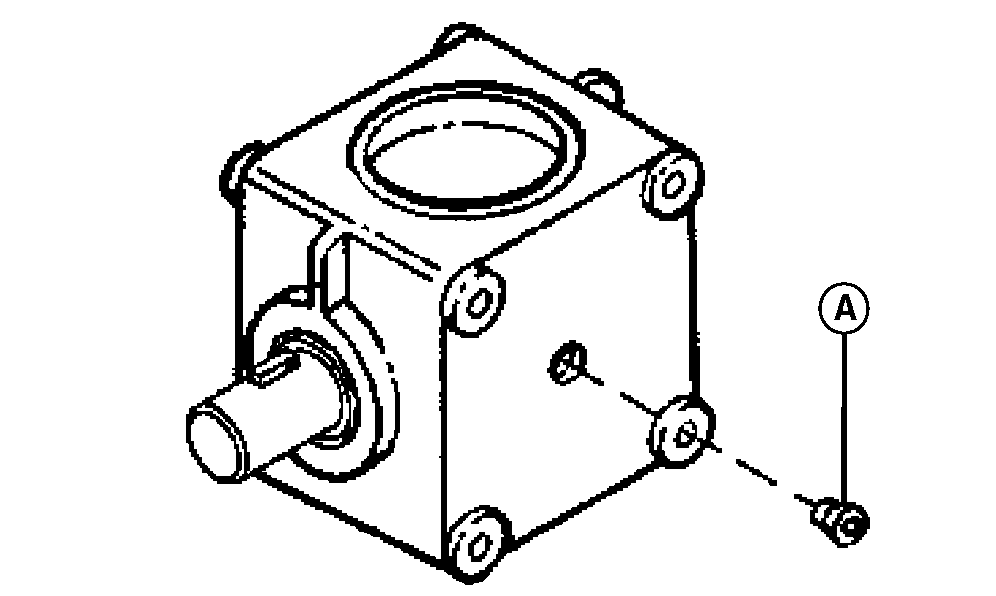

   TCAL46591-UN-12APR13

   Reference view shown.

   Remove check plug (A) and tilt gearbox on it’s side, over a suitable container, and allow the gearbox oil to drain completely.

---




4. Install gearbox and drivebelt.

5. Add oil through check plug hole until oil is level with the bottom of the hole.

6. Install check plug and tighten.
