Lubricating Anti-Scalp Wheel (60 and 72 Inch)

TCAL46570
TCAL46570-UN-12APR13

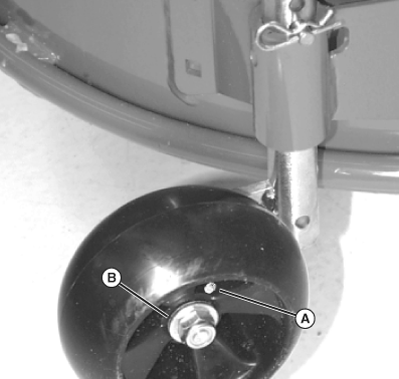

  1. Grease the anti-scalp wheel at grease fitting (A) by pumping grease gun until grease can be seen seeping out at axle (B).

  2. Clean excess grease off of anti-scalp wheel.
