Lubricating Caster Wheel Axles and Pivots

  1. Park machine safely. (See Parking Safely in the SAFETY Section.)

  2. Lower mower deck completely to ground.

  3. TCT008739
    TCT008739-UN-26SEP13

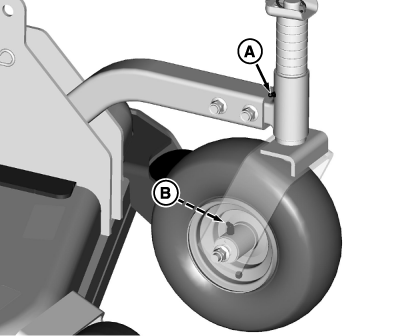

    Lubricate mower deck caster wheel pivots (A) using recommended grease.


  4. Lubricate caster wheel axle (B) using recommended grease.

OUMX068,00002A2-19-20140228
