Checking Gearbox Oil Level

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

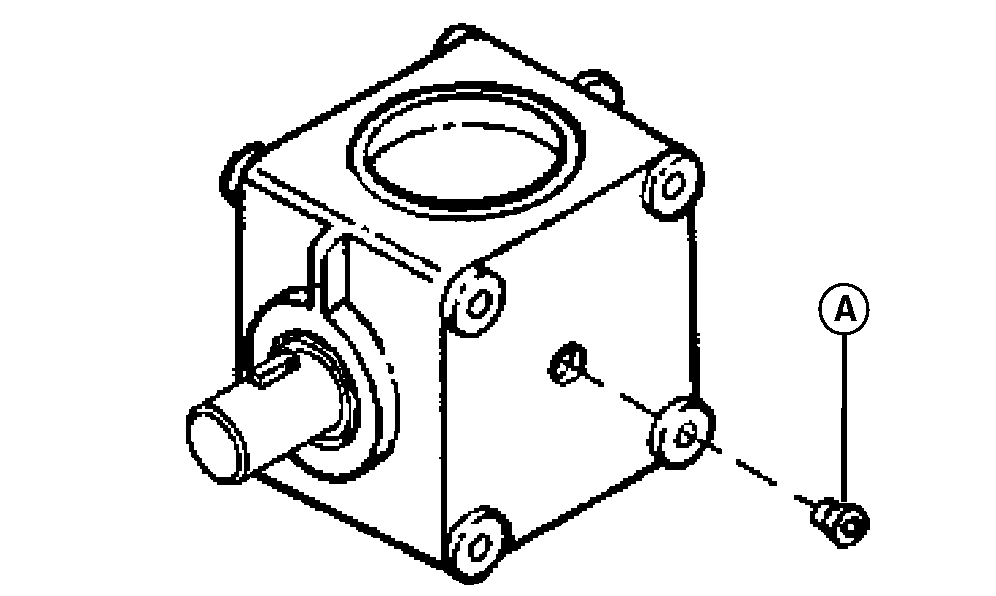

  2. Make sure mower is in operating position and level.

  3. TCAL46590
    TCAL46590-UN-12APR13

    Reference view shown.

    Remove check plug (A). Oil should be level with bottom of hole.


  4. Add oil, if necessary, through check plug hole.

  5. Install check plug and tighten.
