Using Service Latches

CAUTION: Avoid Injury! Unlatch service chain before moving the machine to avoid possible injury. The machine can become unstable when driving on slopes or at high speeds with front attachment raised or removed. Travel at slow speeds and avoid sudden braking with attachment raised or removed. The PTO continues to run after the attachment is raised. Turn off PTO when not in use.

  1. Stop machine on a level surface, not a slope.

  2. Turn off PTO switch.

  3. Raise mower deck to highest level.

  4. Lock the park brake.

  5. Stop the engine and remove the key.

  6. Wait for engine and all moving parts to stop before you leave the operator’s seat.

  7. TCT010375
    TCT010375-UN-20FEB14

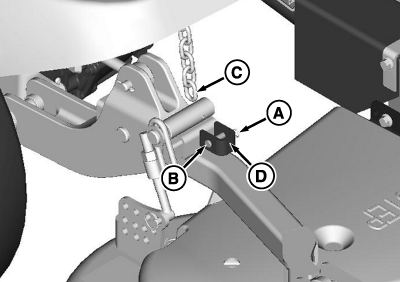

    Remove spring pin (A) and clevis pin (B) from mower deck lift arm.


  8. Insert bottom link of service latch chain (C) into welded bracket (D) on mower deck lift arm.

    NOTE: Service latch chain has 7 links to accommodate all configurations. Select chain link that provides the tightest fit.

  9. TCT010376
    TCT010376-UN-20FEB14

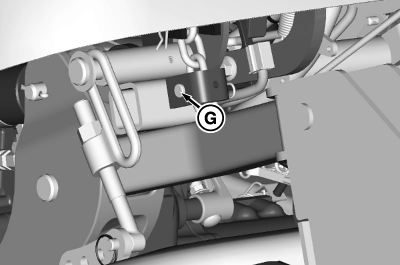

    Install clevis pin (G) through bracket and chain, and secure with spring pin.
