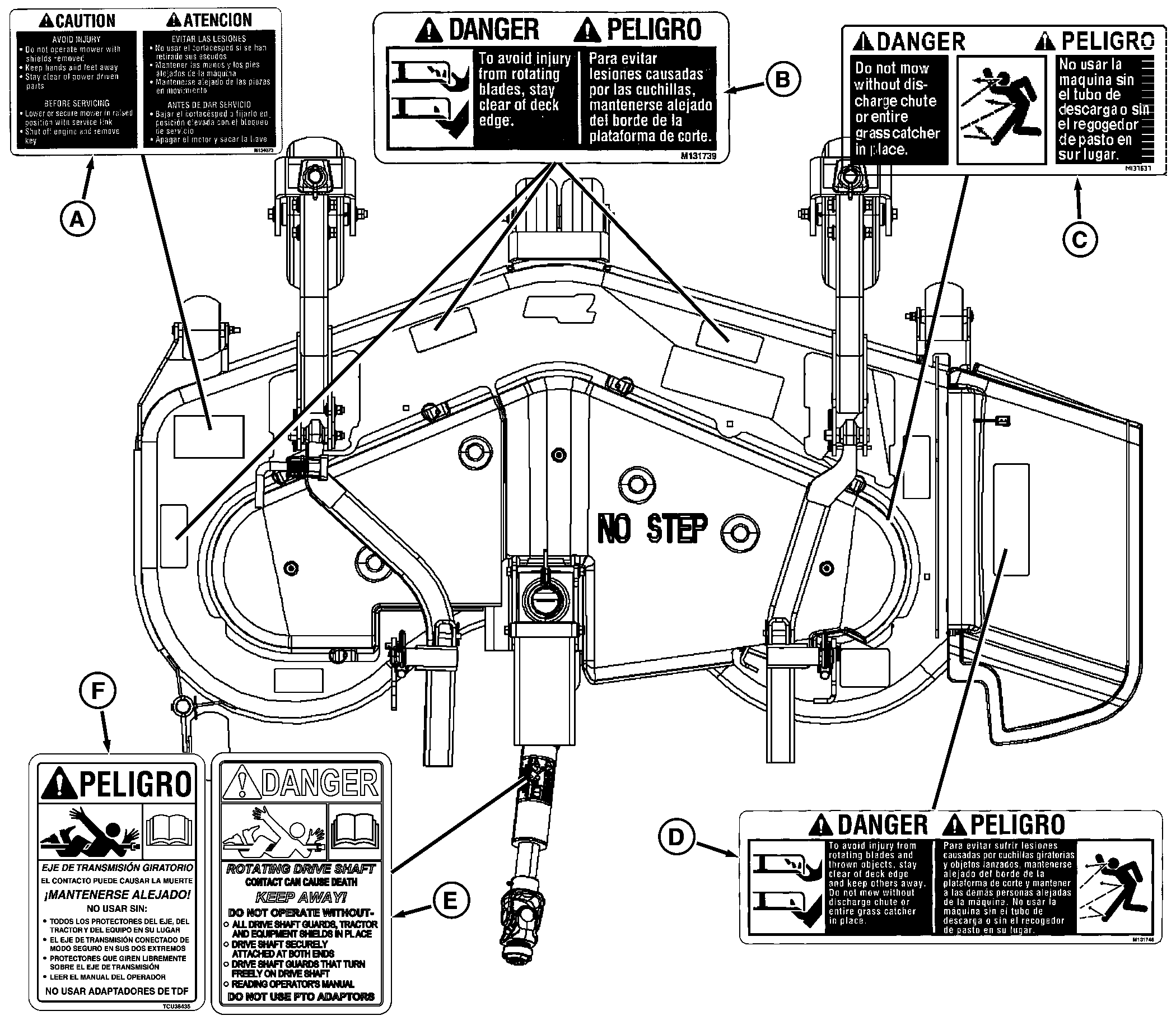

Safety Label Location (60 and 72 in. Side Discharge)

NOTE:

TCT009409
TCT009409-UN-23APR14

Use label number listed in table below to locate complete text of safety label message following this illustration. Pictorial labels are required for certain parts of the world. Your machine may not be equipped with these labels.

A - CAUTION M134073

B - DANGER M131739

C - DANGER M137637

D - DANGER M131748

E - DANGER TCU13206

F - DANGER TCU38435 (Spanish)

Label location for 1.52 m (60 in.) side discharge deck shown. Label location for 1.83 m (72 in.) side discharge deck is the same.

OUMX068,0000414-19-20140408
