Install PTO Shaft

1.
   TCT009417-UN-19FEB14

   Picture Note: 60 in. side discharge deck shown.

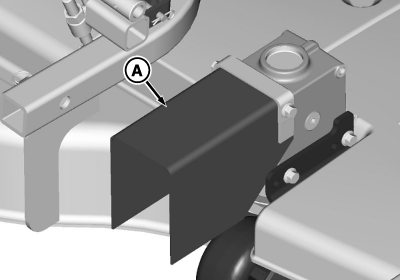

   Pull back rubber shield (A) on top of mower deck to access the gearbox input shaft.

---




2.
   TCT009418-UN-19FEB14

   Picture Note: 60 in. side discharge deck shown.

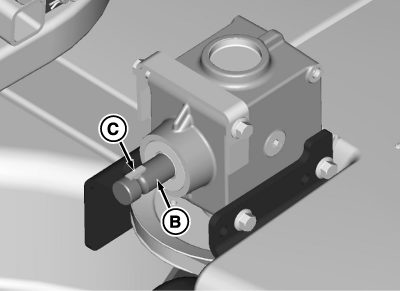

   Clean shaft (B) with a wire brush. Install shaft key (C) from bag of parts.

---




3. Apply a light coat of recommended grease to input shaft and key.

4.
   TCT009419-UN-19FEB14

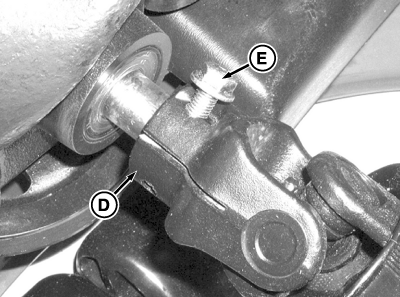

   Install yoke (D) onto input shaft, lining up key and slot on shaft with the yoke.

---




5. Install M10 x 50 mm flange head bolt (E) from bag of parts into yoke and tighten to specification.

   Item	Measurement	Specification
   PTO Shaft Yoke Bolt	Torque	122 N·m (90 lb.-ft.)
