Rotating Mower Deck


Rotating Mower Deck for Service

  1. Raise the mower deck completely.

  2. Park the machine safely. (See Parking Safely in the Safety section.)

  3. CAUTION: Avoid injury! Engage service latches. Mower deck can drop if hydraulic pressure is lost.

    Engage the service latches.

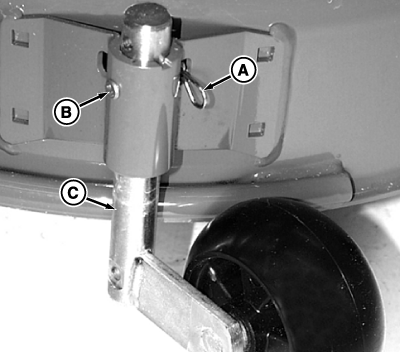

  4. TCT009575
    TCT009575-UN-01DEC13

    60 and 72 Inch Mower Decks Only: Remove the spring pin (A) from the drilled pin (B) holding the anti-scalp wheel bracket (C) onto the left side of mower deck.


  5. Remove the anti-scalp wheel from mower deck.

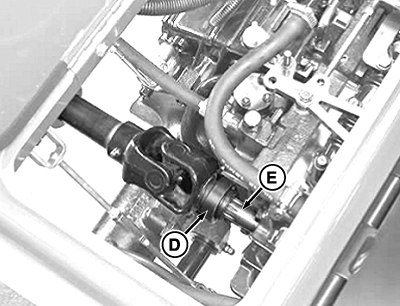

  6. TCT009576
    TCT009576-UN-01DEC13

    Open service hatch on machine.


  7. Pull forward on the coupler ring (D) located on the mower deck PTO drive shaft. Pull the drive shaft off of machine PTO output shaft (E).

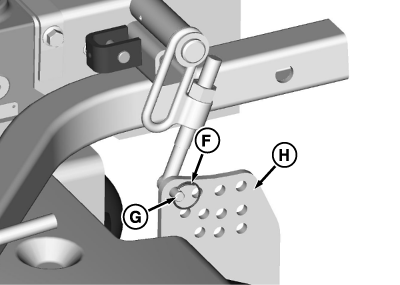

  8. TCT009577
    TCT009577-UN-20FEB14

    Remove the retaining ring (F) from the hanger pin (G).


  9. NOTE: To return the mower deck to its original cutting height, note the hole location that the hanger pin was installed in before removing the hanger pin.

    Remove hanger pin from hole in adjustment plate (H).

  10. Repeat for the other side of mower deck.

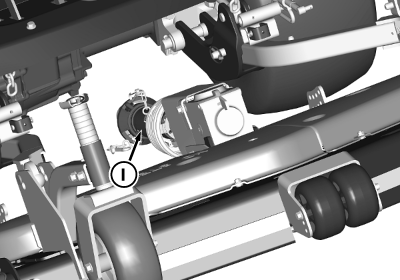

  11. TCT009578
    TCT009578-UN-01DEC13

    Lower rear of mower deck down to the ground. PTO drive shaft (I) will fall clear of front axle.

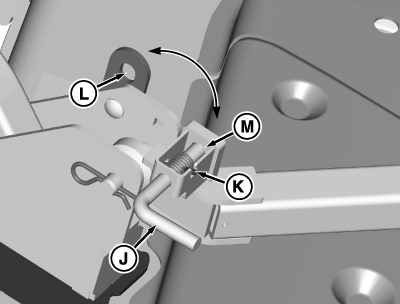

  12. TCT009579
    TCT009579-UN-20FEB14

    Pull mower deck service lock handle (J) out and rotate back until the spring is compressed and pin (K) is locked into slot.


  13. Rotate the mower deck back until the hole (L) in the deck bracket is aligned with the service lock hole (M).

  14. Rotate the service lock handle (J) forward to extend the pin into deck bracket hole (L).


Rotating Mower Deck for Operation

  1. Pull mower deck service lock out of deck bracket.

  2. Rotate deck forward, keeping mower deck drive shaft from digging into ground.

  3. Route mower deck drive shaft up on top of machine front axle, and connect to machine PTO output shaft on transaxle.

  4. Attach the front and rear drive shaft shield chains to the brake cross shaft. Adjust the chains as required to maintain minimal slack as the mower deck is raised or lowered to its travel limits.

  5. Rotate mower deck to level position.

  6. Install rear hanger pins into holes in rear adjustment plates that correspond to desired cutting height.

  7. Install retaining rings on left and right side hanger pins.

  8. Install anti-scalp wheel onto mower deck.

  9. Unlock service latches.

  10. Lower mower deck to ground.

  11. Adjust anti-scalp wheel to 6 mm (1/4 in.) above level ground.

OUMX068,000043F-19-20140220
