Trim Discharge Chute


60 in. MOD Deck

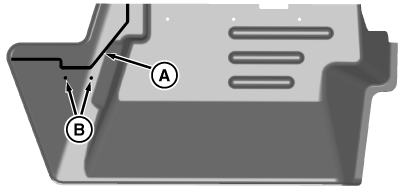

  1. TCT012321
    TCT012321-UN-12FEB15

    Cut along scribe line (A) and drill at hole locations (B) if present. The following instructions are for discharge chutes without the scribe and drill lines.

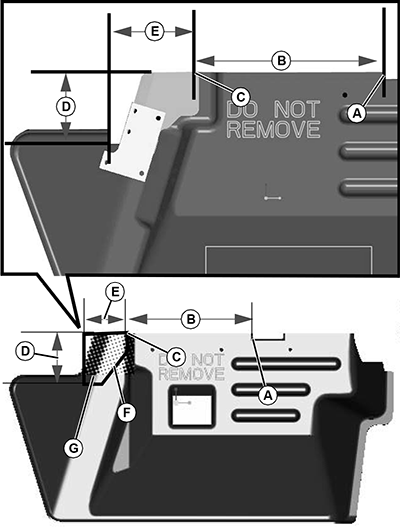

  2. TCAL45486
    TCAL45486-UN-08APR13

    Top image shows parts installed for clarity only.

    Begin at point (A) and measure distance (B) as shown. Scribe a mark (C).


  3. Measure distance (D) beginning from hinge side of guard as shown. Scribe a mark.

  4. Begin at point (C) and measure distance (E) as shown. Scribe a mark.

  5. Using an appropriate tool, measure and mark a 45° angle line (F).

  6. Extend remaining lines from marks so they meet at a 90° angle and identify the area (G) as shown.

  7. Remove area (G) using a suitable cutting tool.

    Distance (B)..............270.00 ± 0.80 mm (10.62 ± 0.03 in.)

    Distance (D)..............100.00 ± 0.80 mm (3.93 ± 0.03 in.)

    Distance (E)..............110.00 ± 0.80 mm (4.33 ± 0.03 in.)


Install Patch on Discharge Cutout

  1. IMPORTANT: Rubber hinge must be installed on top of metal plate to function properly.

    Insert pan head screws on metal plate side and nuts on rubber hinge side. Tighten joint by turning screw while holding nut to prevent tearing rubber hinge.

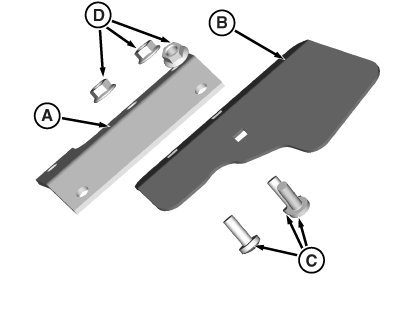

    TCT012327
    TCT012327-UN-16APR15

    Install rubber hinge (A) on top of metal plate (B) using three M6x16 pan head screws (C) and M6 flange nuts (D).

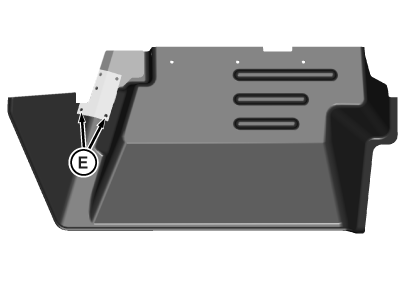

  2. TCT012328
    TCT012328-UN-16APR15

    Position the metal plate hinge assembly onto the chute, where the cutout is and drill two 6.35 mm (1/4 in.) holes (E) through the chute where the rubber hinge indicates.


  3. Bolt rubber hinge on top of chute with two M6x16 pan head screws and M6 flanged nuts.


60SD and 72SD Decks

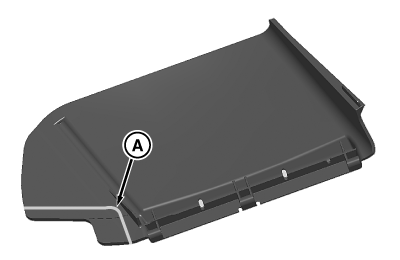

  1. TCT012322
    TCT012322-UN-12FEB15

    Cut along scribe line (A) if present. The following instructions are for discharge chutes without the raised scribe lines.

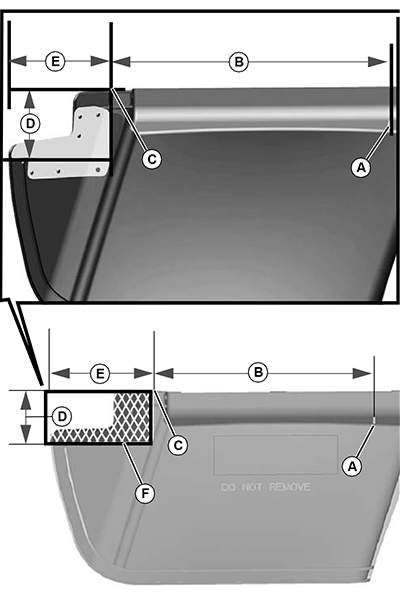

  2. TCAL45488
    TCAL45488-UN-08APR13

    Top image shows parts installed for clarity only.

    Begin at point (A) and measure distance (B) as shown. Scribe a mark (C).


  3. Measure distance (D) beginning from hinge side of guard as shown. Scribe a mark.

  4. Begin at point (C) and measure distance (E) as shown. Scribe a mark.

  5. Extend lines from both marks so they meet at a 90° angle and identify the boxed area (F) as shown.

  6. Remove boxed area (F) using a suitable cutting tool.

    Distance (B)..............423.00 ± 0.80 mm (16.65 ± 0.03 in.)

    Distance (D)..............101.6 ± 0.80 mm (4.0 ± 0.03 in.)

    Distance (E)..............200.00 ± 0.80 mm (7.87 ± 0.03 in.)


Install Patch on Discharge Cutout

  1. IMPORTANT: Rubber hinge must be installed on top of metal plate to function properly.

    Insert pan head screws on metal plate side and nuts on rubber hinge side. Tighten joint by turning screw while holding nut to prevent tearing rubber hinge.

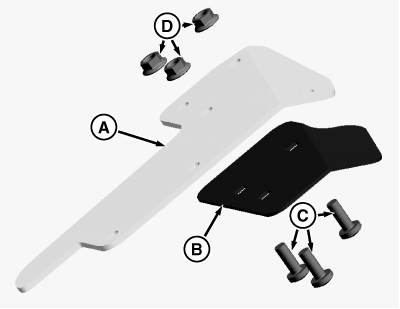

    TCT012319
    TCT012319-UN-11FEB15

    Install rubber hinge (A) on top of metal plate (B) using three M6x16 pan head screws (C) and M6 flange nuts (D), with the rubber hinge on top of the metal bracket.

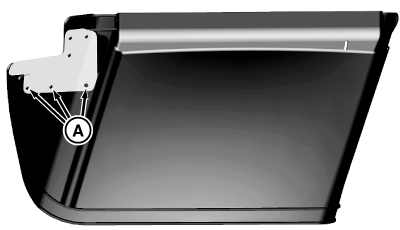

  2. TCT012318
    TCT012318-UN-10FEB15

    Position the metal plate hinge assembly onto the chute, where the cutout is and drill three 6.35 mm (1/4 in.) holes (A) through the chute where the rubber hinge indicates.


  3. Bolt rubber hinge on top of chute with three M6x16 pan head screws and M6 flanged nuts.

MX52301,0000A02-19-20150325
