Install Brackets for Mower Deck Sheave Cover

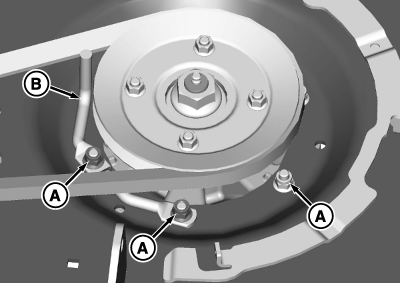

  1. TCT009689
    TCT009689-UN-09JAN14

    Remove and retain nuts (A). Remove debris guard guide (B).

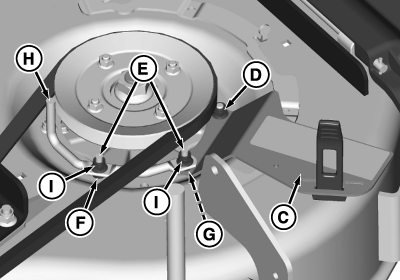

  2. TCT009690
    TCT009690-UN-09JAN14

    Viewed from right rear of mower deck.

    Install rear support bracket assembly with label (C) at the rear of the right side spindle as shown.


  3. Loosely secure rear support bracket assembly with nut (D) removed earlier.

  4. Replace the spindle stud bolts with two M8x40 mm hex flange head bolts (E).

  5. Use three M8 washers (F) between the deck shell and the debris guard guide.

  6. Use one M8 washer (G) on top of the rear support bracket assembly.

  7. Install debris guard guide (H) on top of the washers.

  8. Install nuts (I) removed earlier finger tight.

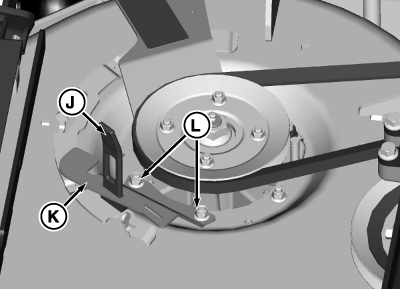

  9. TCT009691
    TCT009691-UN-09JAN14

    Viewed from front of mower deck.

    Install rubber latch (J) through the front support bracket (K).


  10. Remove and retain existing nuts (L).

  11. Install front support bracket over spindle studs.

  12. Install nuts removed earlier finger tight.

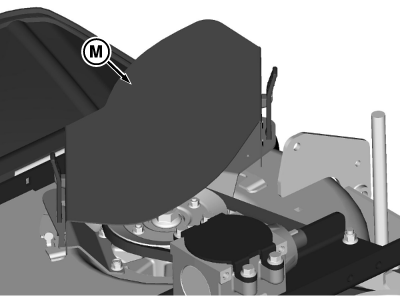

  13. TCT009692
    TCT009692-UN-09JAN14

    Place belt cover (M) on brackets to ensure proper fit up.


  14. Tighten all hardware and remove cover.

OUMX068,00004E4-19-20140813
