Install Frame Brackets

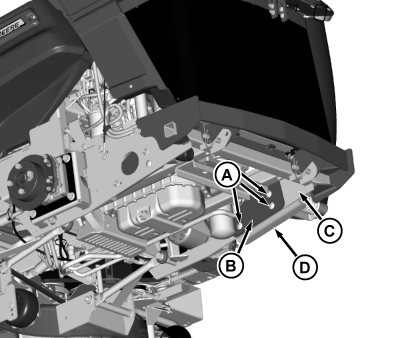

  1. TCT009683
    TCT009683-UN-05AUG14

    Install three M12x40 carriage bolts (A) through plate (B) and right side frame (C).


  2. Install right mounting bracket (D) over bolts and secure to frame with three M12 flange locknuts.

  3. TCT011385
    TCT011385-UN-06AUG14

    TCT011386
    TCT011386-UN-13AUG14

    Remove four M8 nuts (E) and two M8x30 carriage bolts (F) to remove tail pipe.

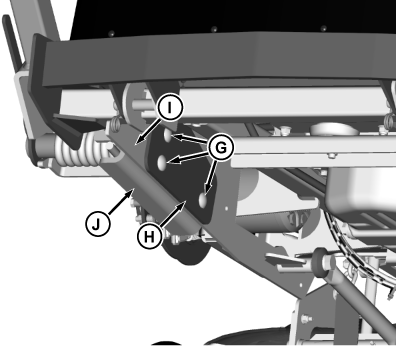

  4. TCT011387
    TCT011387-UN-06AUG14

    Install three M12x40 carriage bolts (G) through plate (H) and left side frame (I).


  5. Install left mounting bracket (J) over bolts and secure to frame with three M12 flange locknuts.

  6. Tighten hardware on right and left side mounting brackets.

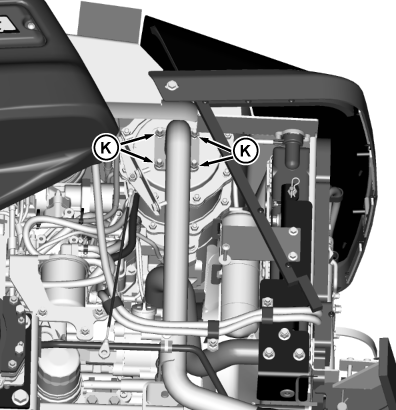

  7. TCT011388
    TCT011388-UN-06AUG14

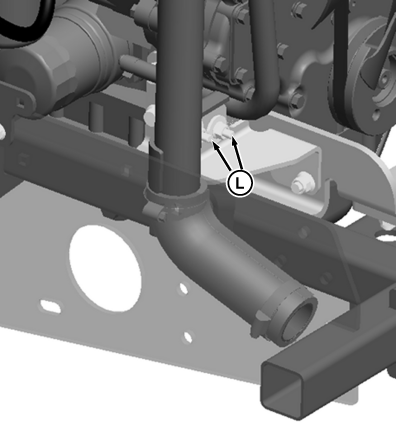

    TCT011389
    TCT011389-UN-13AUG14

    Install tail pipe using four M8 nuts (K). Tighten, in a cross pattern, to 28.5 N·m (21 lb.-ft.). Double check torque when done.


  8. Install two new M8x30 carriage bolts (L) and two new M8 crown nuts (from kit).

OUMX068,00004E5-19-20140819
