Install ROPS Mounting Pin

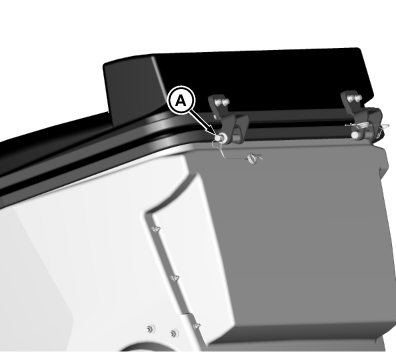

  1. IMPORTANT: Use pin (A) from hopper door for this step. (See Install Hopper Assembly Onto Hopper Frame in the Assembly section.)

    TCT011397
    TCT011397-UN-19AUG14

    TCT009685
    TCT009685-UN-20DEC13

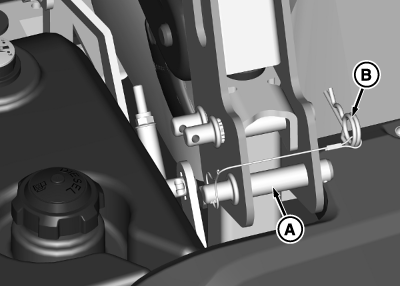

    Viewed from left rear of machine.

    Remove pin (A) from hopper door.


  2. Install upper mounting pin (A) in rear hole of ROPS bracket.

  3. Secure to ROPS bracket using spring locking pin (B).

  4. Repeat for right side.
