Install Front Ballast Bracket

  1. TCT009686
    TCT009686-UN-20DEC13

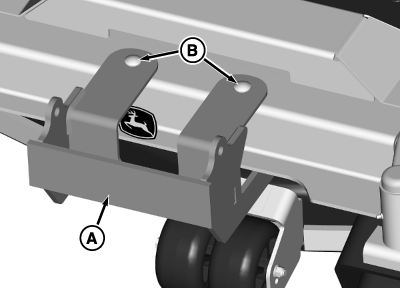

    Install front weight bracket (A) into upper holes using two M12x40 carriage bolts (B) and two M12 locknuts.


  2. TCT009687
    TCT009687-UN-20DEC13

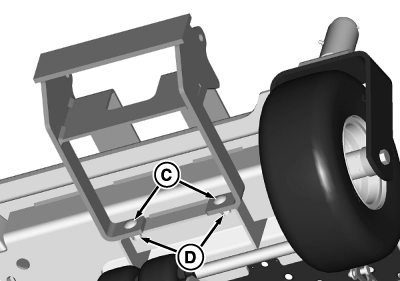

    Install front weight bracket into lower holes using two M12x40 carriage bolts (C) and two M12 locknuts (D).

OUMX068,00004E7-19-20140806
