Install Wiring Harness (Front)

  1. Raise or remove seat.

  2. TCT009693
    TCT009693-UN-10JAN14

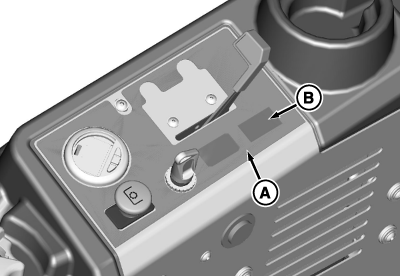

    Cut through label (A) to expose hole (B) for switch.


  3. TCT009694
    TCT009694-UN-10JAN14

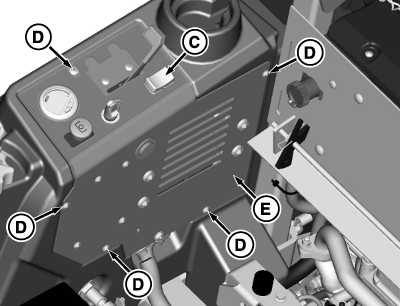

    Install switch (C) into panel.

    NOTE: Switch must have notch facing towards the operator.


  4. Remove and retain five screws (D). Carefully remove panel (E) from console and set aside.

  5. TCT011396
    TCT011396-UN-12AUG14

    TCT011398
    TCT011398-UN-22AUG14

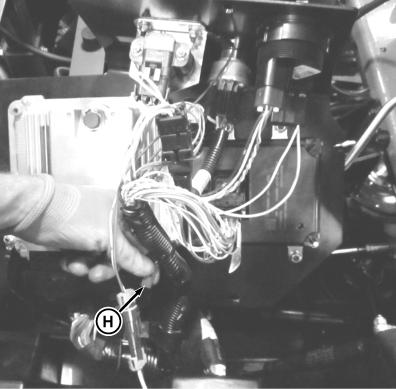

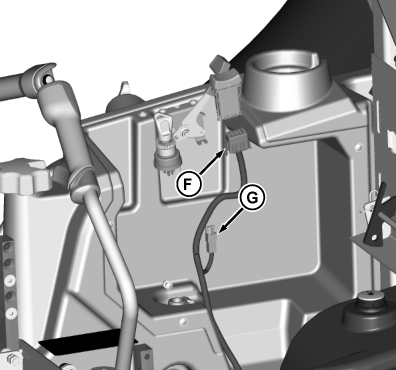

    Connect switch to connector (F). Connect connector (G) from MCS harness to connector (H) from main wiring harness.


  6. TCT009697
    TCT009697-UN-25AUG14

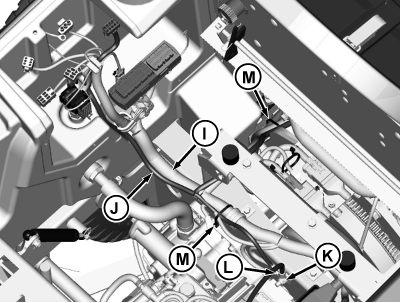

    Route front harness (J) along main harness (I). Secure to main harness with tie straps (M).


  7. To ground stud remove nut (K) and install ring terminal (L) of black wire.

  8. Plug connector into switch installed earlier.

  9. Install panel to console with five screws removed earlier.

  10. TCT009698
    TCT009698-UN-25AUG14

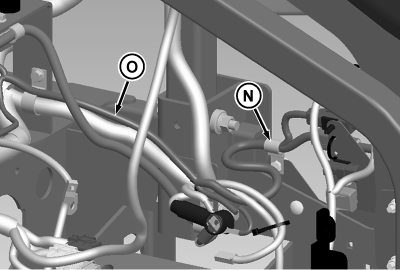

    Continue to route front harness (O) along main harness and secure with tie straps.


  11. Insert front harness into P-clip (N) as shown.

  12. TCT011390
    TCT011390-UN-25AUG14

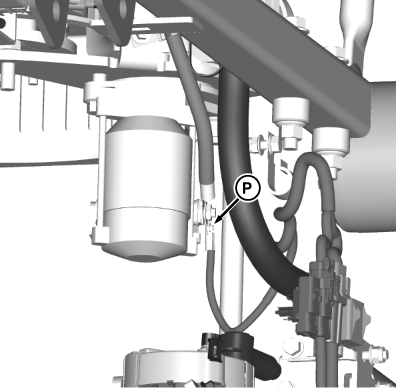

    Install ring terminal of red wire (P) to starter terminal.


  13. TCT009695
    TCT009695-UN-25AUG14

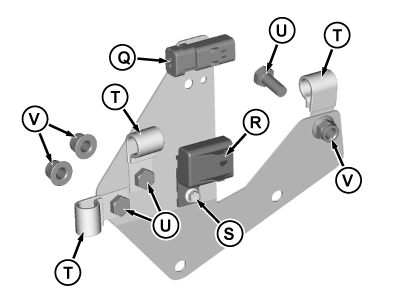

    Assemble harness plate:

    1. NOTE: Connectors (Q) and (R) come taped to the harness. Cut them from the harness and install as shown. These connectors are used for storing harness plugs when MCS is removed.

      Snap connector (Q) into top two holes of plate.

    2. Secure connector (R) to plate with M6 self-tapping screw (S).

    3. Install three P-clips (T) to plate as shown. Secure with three M8x20 hex head bolts (U) and M8 locknuts (V).


  14. TCT009696
    TCT009696-UN-25AUG14

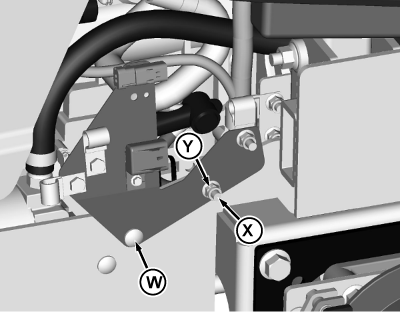

    Install harness plate to vehicle:

    1. Remove and retain carriage bolt and nut (W) from filter head.

    2. Position plate over holes in frame. Loosely secure plate to frame with M8x25 carriage bolt (X) and M8 locknut (Y).

    3. Install carriage bolt and nut (L) removed earlier.

    4. Tighten hardware.


  15. IMPORTANT: MCS side connectors (aa) will be connected later.

    TCT010460
    TCT010460-UN-25AUG14

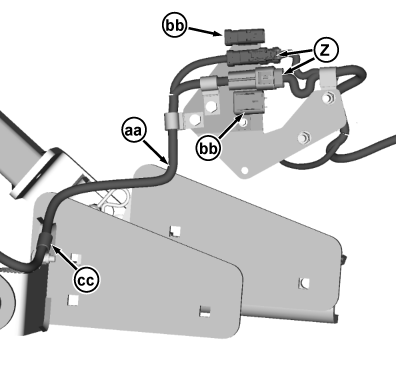

    Plug in machine side connectors (Z). Connectors (bb) will come in on wire harness, taped to harness. Cut from harness and install as shown on bracket. (these connectors are used for storing harness plugs when MCS is removed).


  16. Route harness (aa) through p-clamp (cc).

OUMX068,00004E8-19-20140825
