Assemble Blower

TCAL45120
TCAL45120-UN-10APR13

TCAL45121
TCAL45121-UN-10APR13

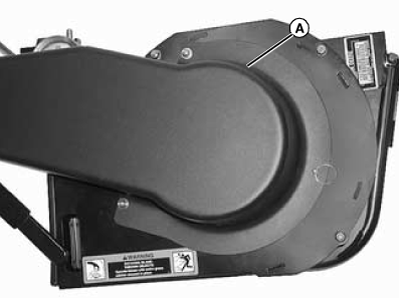

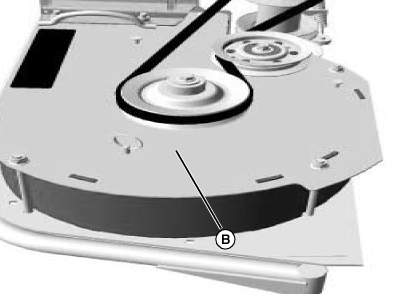

  1. Remove belt guard (A) and secondary drive belt (B).

  2. TCAL45122
    TCAL45122-UN-10APR13

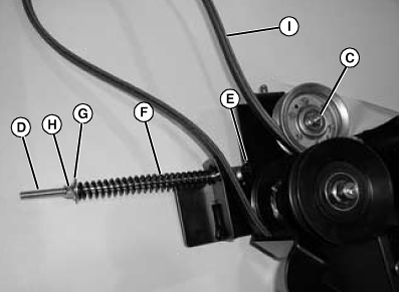

    Loosen bolt (C) on idler pulley.


  3. Install primary tension rod (D), retaining clip (E), spring (F), washer (G), and locknut (H).

  4. NOTE: Use shorter belt for 60 in. mower decks and longer belt for 72 in. mower decks.

    Install primary drive belt (I).

  5. Tighten bolt on idler pulley.

  6. Install, adjust, and tighten secondary drive belt (B).

  7. Install belt guard (A).

  8. TCAL45123
    TCAL45123-UN-10APR13

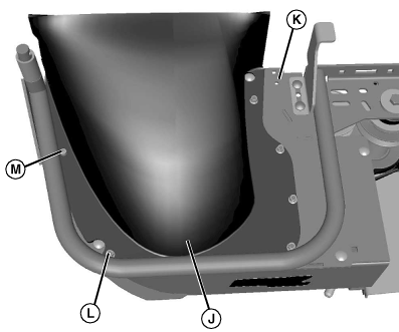

    Hex socket head bolt (M) must be installed in this location.

    Install blower boot (J) on the bottom of blower housing (K). Install using six M6x20 carriage bolts (L) and one M6x20 hex socket head bolt (M) with M6 locknuts.


  9. TCT010432
    TCT010432-UN-10FEB14

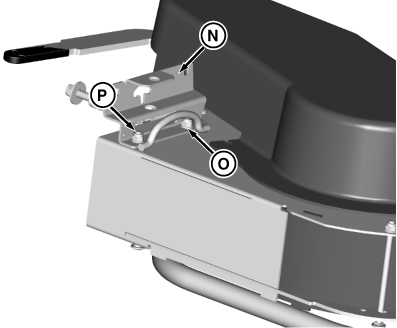

    Attach bracket (N) to blower housing using two M8 locknuts (O) and two M8x20 carriage bolts (P).


  10. TCT010443
    TCT010443-UN-10FEB14

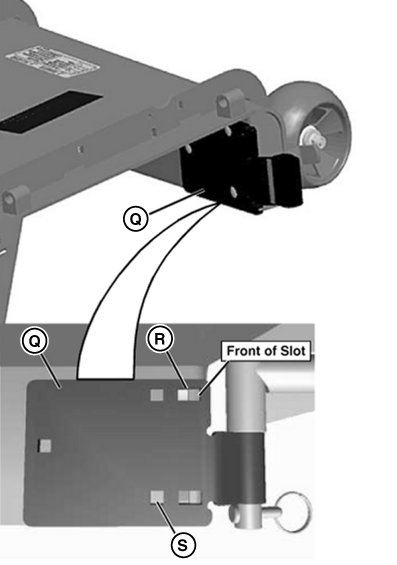

    Position front pivot bracket (Q) flush with deck.


  11. Install and tighten three M8x25 carriage bolts and locknuts in locations listed below:

    • 60 in. deck is located front of slot (R).
    • 72 in. deck is location (S).

OUO2004,000081C-19-20140217
