Install Bracket Assembly for all Mulch on Demand Decks.

TCAL45125
TCAL45125-UN-10APR13

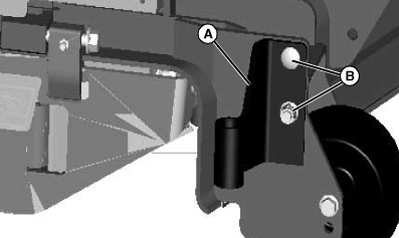

  1. Position front pivot bracket (A) flush with outside scalp wheel frame.

  2. Install two M8 X 25 carriage bolts (B) and locknuts, and secure bracket into place.

OUO2004,000081D-19-20140131
