Installing Rear Blower Bracket

TCAL45126
TCAL45126-UN-10APR13

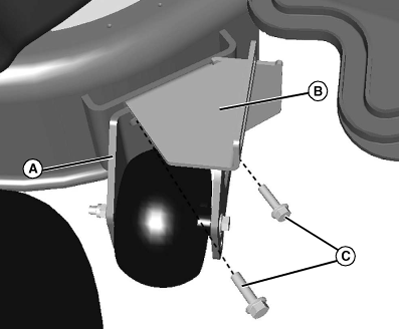

  1. Remove screws and rear right anti scalp wheel assembly (A) from mower deck.

  2. Position blower support bracket (B) in place flush against deck.

  3. install anti scalp wheel onto bracket and secure in place with new provided M8x25 screws (C).

OUO2004,000081E-19-20140131
