Install New Gate (Mulch on Demand Mower Decks Only)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

   CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

   • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
   • Always wear gloves when handling mower blades or working near blades.



2. Lift discharge chute up.


   TCAL45127-UN-10APR13

---

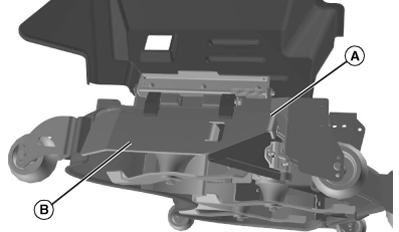

3. Remove link assembly (A).

4. Remove discharge gate (B).

5.
   TCAL45128-UN-10APR13

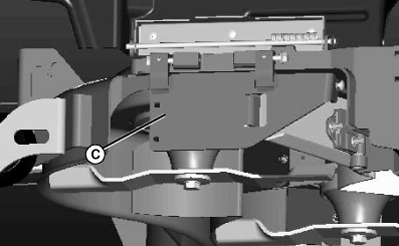

   Install new gate (C) and attach link assembly.

   NOTE: May need to remove gate before installing brackets. After installing gate adjust gate linkage in the "mulch" position until gate is completely closed.

---

Gate Extension for MCS Gate

NOTE: Gate extension must be installed if machine is operated without MCS blower.

1.
   TCAL45129-UN-10APR13

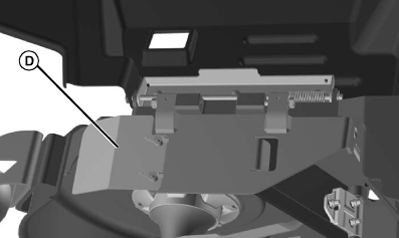

   Install gate extension (D) with hardware and secure in place.

---
