Install Hopper Assembly Onto Hopper Frame

TCT010444
TCT010444-UN-19AUG14

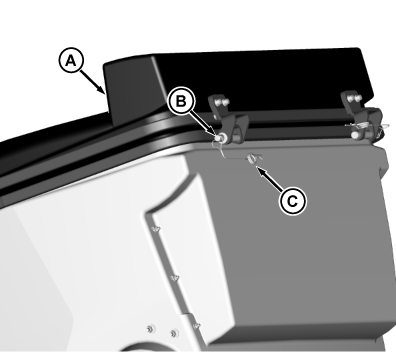

  1. Remove hopper door (A) and drilled pins (B) with retaining clips (C).

    NOTE: Retain hardware for installation.

  2. Unlock latch.

  3. NOTE: All carriage bolts in hopper will have the head of the bolt inside and nut on the outside.

    CAUTION: Do Not over tighten. Over tightening can cause the plastic to crack. Should only be tight enough that it holds the hopper securely to the frame.

    TCT010767
    TCT010767-UN-26FEB14

    View from top

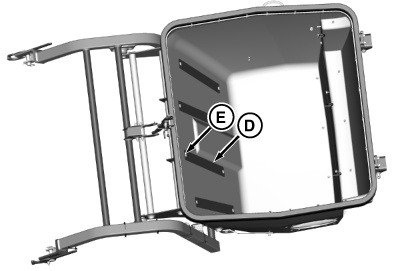

    Place hopper assembly on frame. Secure hopper with four plates (D) using two M8x25 carriage bolts (E) and M8 locknuts per plate. Install all hardware before tightening.

    CAUTION: Machine component is heavy. Use a safe lifting device or get an assistant to help lift and hold component into place for installation.


  4. CAUTION: Do Not over tighten. Over tightening can cause the plastic to crack. Should only be tight enough that it holds the hopper securely to the frame.

    TCT010450
    TCT010450-UN-25FEB14

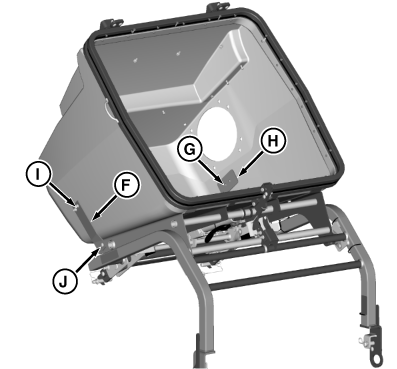

    Attach bracket (F) to hopper. Install two M8x25 carriage bolts (G) through the support plate (H), hopper, and bracket.


  5. Attach two M8 locknuts (I).

  6. Install two M8x25 carriage bolts (J) through frame and secure with two M8 locknuts.

  7. TCT010435
    TCT010435-UN-25FEB14

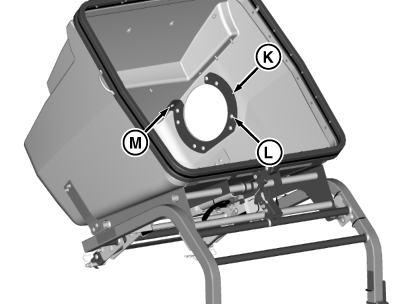

    Install the inner ring (K) to hopper with eight M8x35 carriage bolts (L) and one M6x25 carriage bolt (M), M6 washer and M6 nut.


  8. TCT010436
    TCT010436-UN-27FEB14

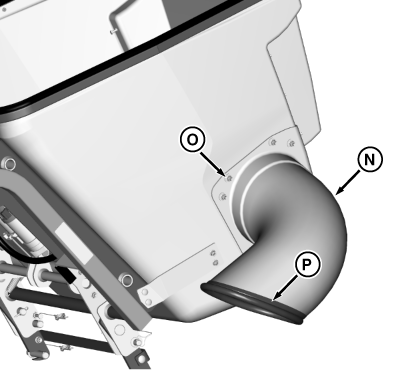

    Secure upper chute (N) to hopper using eight M8 locknuts (O). Tighten all hardware.


  9. Install rubber bulb seal (P) starting at the bottom making sure clip is fully engaged all the way around.

  10. TCT010143
    TCT010143-UN-27FEB14

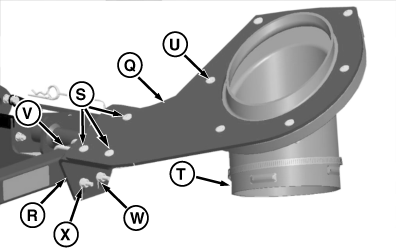

    Install hose bracket (Q) on top of support bracket (R) using three M8x25 carriage bolts (S) and three M8 locknuts.


  11. Install tube (T) using six M8x45 carriage bolts (U) and six M8 locknuts.

  12. Install support bracket (R) to main frame on right side of machine between bumper stop and crossbar using two u-bolts (V), four 10 mm I.D. washers (W) and four 9.5 mm (.375 in.) nuts (X)

  13. TCT010451
    TCT010451-UN-27FEB14

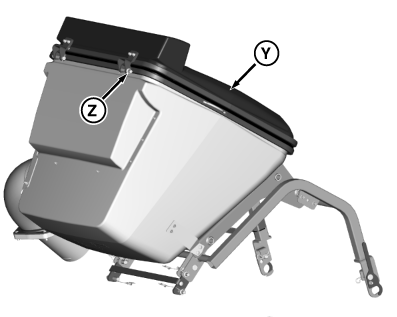

    Install door (Y) with two drilled pins (Z) and two cotter pins.


  14. CAUTION: Machine component is heavy. Use a safe lifting device or get an assistant to help lift and hold component into place for installation.

    TCT010452
    TCT010452-UN-27FEB14

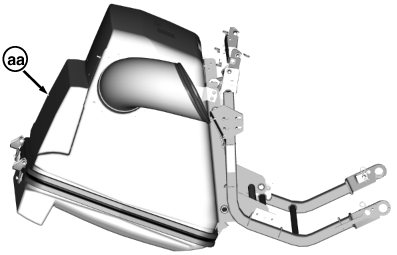

    Flip assembly (aa) over to prepare for installation on machine.

OUO2004,0000824-19-20140819
