Installing Blower

CAUTION: Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

NOTE: The blower assembly weighs approximately 32 kg (70 lbs).

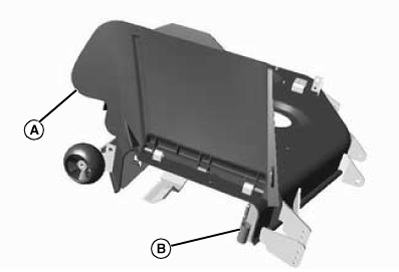

TCAL45154
TCAL45154-UN-10APR13

  1. Lift discharge chute (A) and locate front mounting bracket (B).

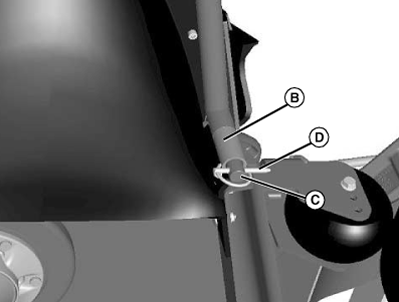

  2. TCAL45155
    TCAL45155-UN-10APR13

    Insert front pivot pin (C) of blower into front bracket mounting bracket (B). Install quick-lock pin (D) into front pivot pin.

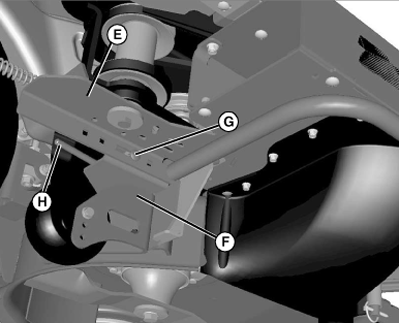

  3. TCAL45156
    TCAL45156-UN-10APR13

    Swing blower into position and align hole blower bracket (E) with hole in blower support bracket (F). Install carriage bolt (G) and handle assembly (H).

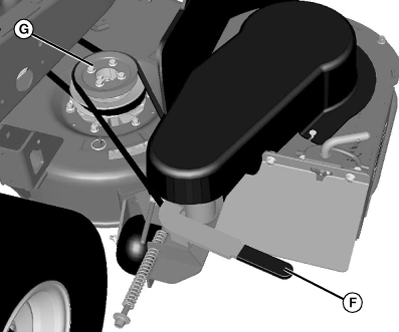

  4. TCAL45157
    TCAL45157-UN-10APR13

    Parts have been removed to show a clear illustration.

    Use tension lever (F) to allow belt to slip over sheave (G).


  5. Install new blower belt shield for your corresponding deck size.

OUO2004,0000827-19-20140131
