Installing Sheave Cover

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

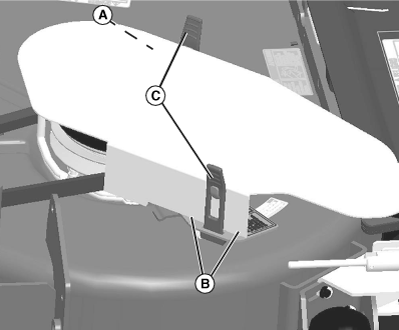

   TCAL45158-UN-10APR13

   Position front belt cover tab (A) into slot first, and then lower two rear tabs (B) into slots, as shown.

---




3. Secure with two bungee straps (C) from previously installed brackets.
