Installing Chute

TCT010433-UN-07FEB14

TCAL45160-UN-10APR13

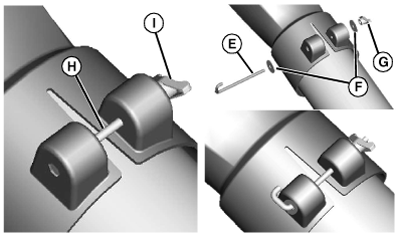

Hex head bolt used in previous production models, J-bolt used in current production models.

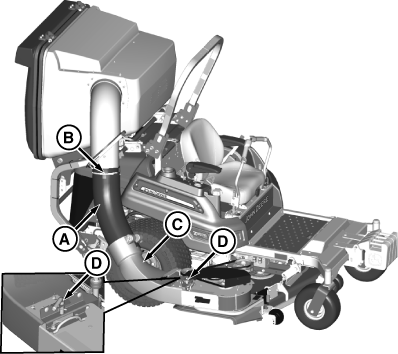

1. Connect tube (A) to upper chute with hose clamp (B).

2. Connect lower end of tube (A) to lower chute (C).

3. Secure hose to lower chute:

   • Secure tube to lower chute with J-bolt (E), washers (F) and knob (G).
   • Secure hose to lower chute with hex head bolt (H) and knob (I).



4. Lift and hold open exhaust flap on blower.

5. Slide lower chute (C) completely onto blower outlet making certain pin (D) is fully lowered, securing lower chute onto blower.

6. IMPORTANT: Do not over tighten knobs. Only tighten to secure hose assembly in place.

   Tighten knobs on upper and lower chutes to hold hose assembly in place.
