Removing Hopper Assembly

1. Remove upper and lower chute.

2.
   TCT010445-UN-26FEB14

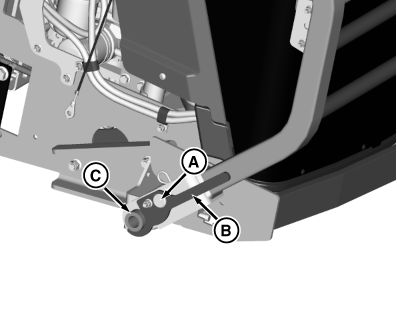

   Remove clip and pin (A).

---




3. Tilt hopper.

4. IMPORTANT: Damage may occur to hood during hood installation if frame contacts hood.

   CAUTION: This is heavier than normal because you're removing the spring assistance by removing the pin.

   Pull latch handle (B) to release hopper from lower mounting pins (C).

5.
   TCT010770-UN-17MAR14

   Some Parts Removed for Ease of Viewing

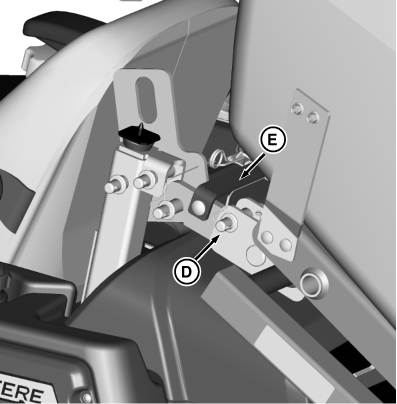

   Remove drilled pins (D) from hopper.

---




6. Using the handle on the door of the hopper, pull back towards the machine, then pull up on the latch (E) while using the handle to control the hopper as it lowers to the ground.

   CAUTION: Do not store Hopper attachment on door to prevent door seal pre-set. Turn hopper on its side.
