Removing Drive Belts

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

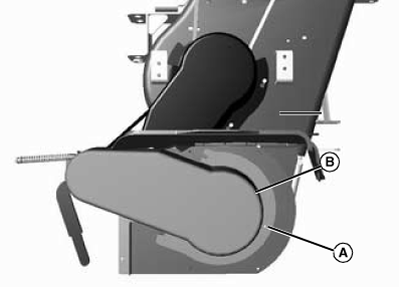

TCAL45169
TCAL45169-UN-10APR13

  1. Remove lock ring (A) and then the secondary belt shield (B).

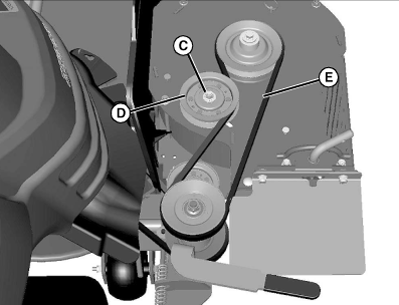

  2. TCAL45170
    TCAL45170-UN-10APR13

    Loosen nut (C), slide pulley (D) aside and remove secondary drive belt (E).

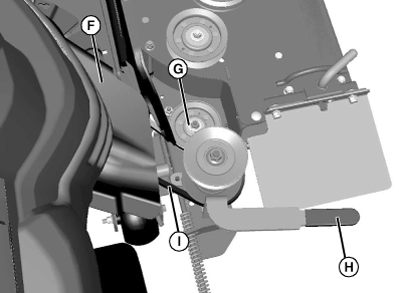

  3. TCAL45171
    TCAL45171-UN-10APR13

    Remove primary belt shield (F).


  4. Loosen nut (G) on tension pulley but do not remove.

  5. NOTE: The use of the tension lever will be required to assist the removal of the belt.

    Rotate tension lever (H) and remove primary belt (I).

  6. Remove all grass accumulation around belt, idler and sheaves.

OUO2004,0000837-19-20140131
