Adjust Primary Belt Tension

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

IMPORTANT: Check tension of new belts after first five hours of operation, adjust if needed.

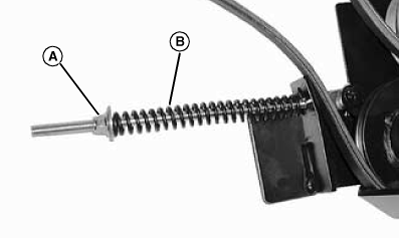

  1. TCAL45176
    TCAL45176-UN-10APR13

    With belt installed tighten nut (A) on tension rod until spring (B) length is within specification.

    ItemMeasurementSpecification
    Tension Rod SpringLength150 mm +/- 10 mm (5.905 in. +/- 0.394 in.)

OUO2004,0000839-19-20140131
