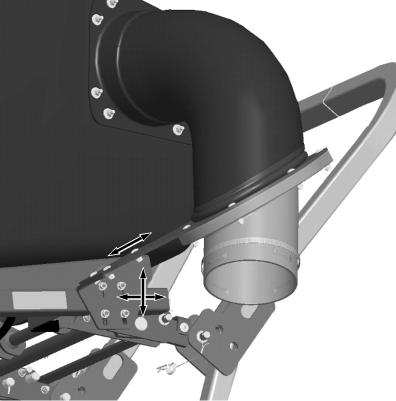

Hopper Elbow

TCT011375-UN-02JUN14

Latch the tilt frame fully

• Adjust bracket at points shown to line up elbow with bracket and make sure seal is partially compressed and centered.
• Loosen four U-Bolt Nuts to adjust forward and aft.
• Loosen three nuts on bracket to adjust in and out.
