Grease Locations

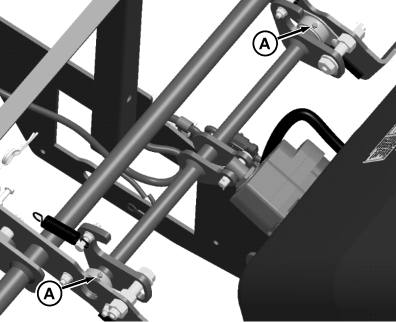

TCT011373
TCT011373-UN-02JUN14

A - Grease Points

  1. Grease latch grease points (A).

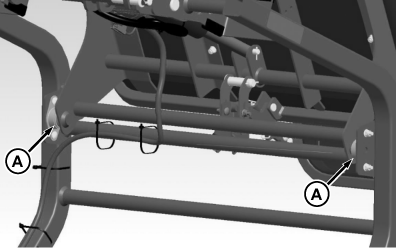

  2. TCT011374
    TCT011374-UN-02JUN14

    A - Grease Points

    Grease tilt frame grease points (A).

OUO2004,0000924-19-20140602
