Assemble Exhaust Shield to Tail Pipe

TCT011381
TCT011381-UN-13AUG14

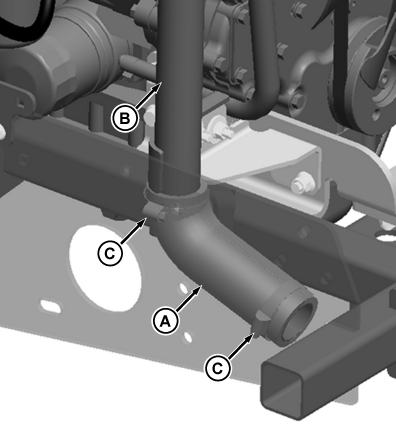

Frame member shown transparent for clarity of exhaust shield location

  1. Place exhaust shield (A) halves around lower bend in tail pipe (B).

  2. Secure shield to pipe using both provided clamps (C).
