Remove Drive Wheels

CAUTION: The machine can fall or slip from an unsafe lifting device or supports.

• Use a safe lifting device rated for the load to be lifted.

• Lower machine onto jack stands or other stable supports and block wheels before servicing.

IMPORTANT: Lift machine at specified points on frame. Using rear bumper as a lift point can damage the frame.

TCAL43863
TCAL43863-UN-21MAR13

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Remove hood.

  3. Slightly loosen four wheel nuts.

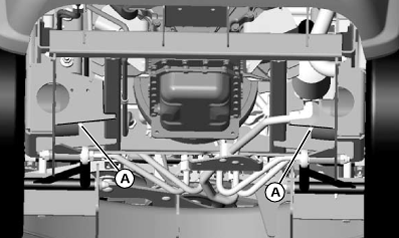

  4. Lift rear end of machine with a safe lifting device centered under tire support frame (A) on the side the tire is being removed.

  5. Place machine on jack stands.

  6. Remove wheel nuts.

  7. Remove wheel.
