Park machine safely. (See Parking Safely in the SAFETY section.)
-
IMPORTANT: Spaces and washers above and below pulley are in
different locations on each spindle on deck assembly. Be certain to
install in exact location as removed when assembling spindle assembly.
Remove mower blade.
-

TCAL45446-UN-12APR13

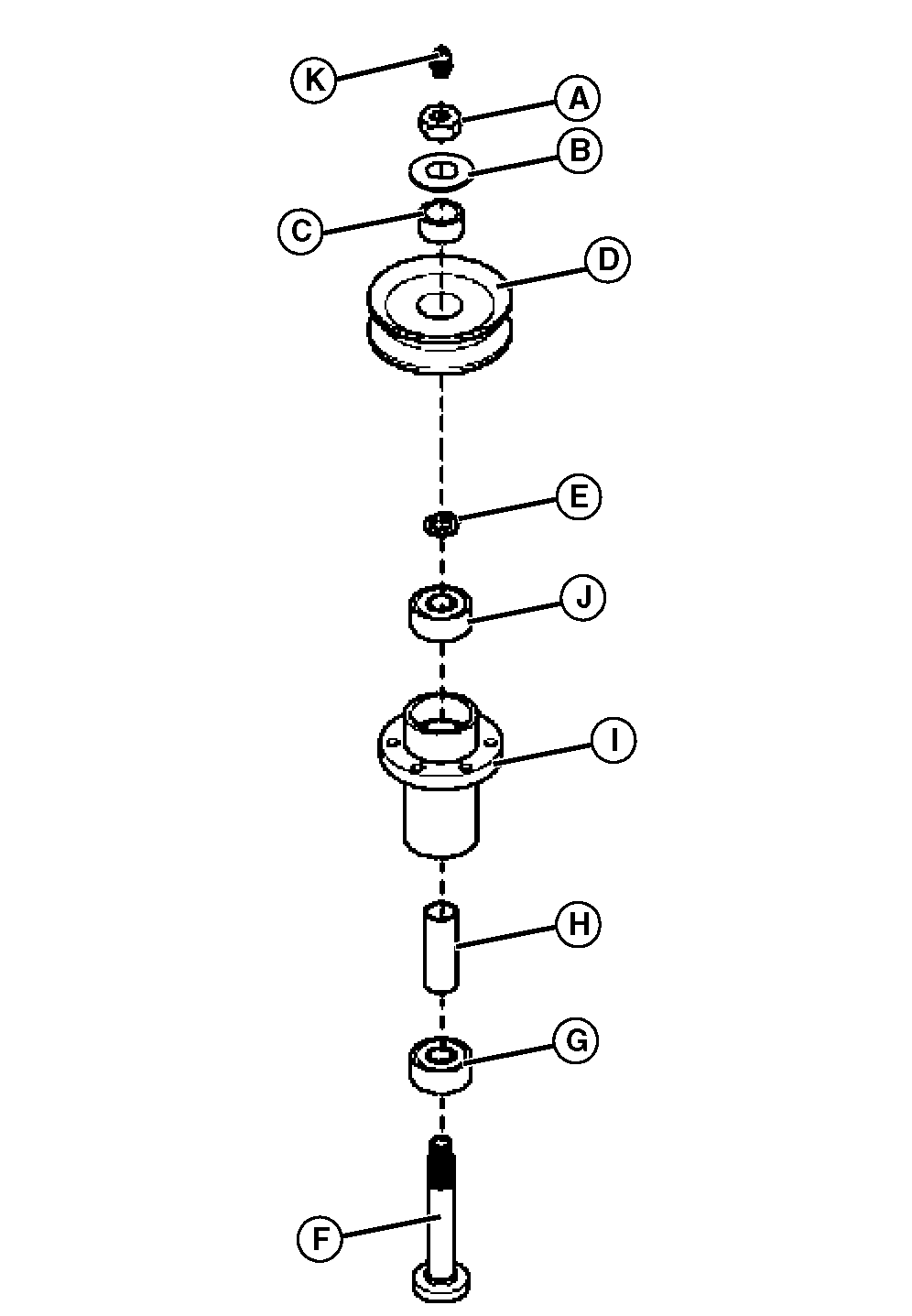

Remove nut (A), flat washer (B), spacer (C) and pulley (D).
-
Remove lower bearing (G) and spacer (H) from spindle housing
(I). Discard bearing (G).
-
Remove and discard upper bearing (J).
-
Clean entire assembly.
-
IMPORTANT: The clearance between the lower bearing and the housing
is only 0.05 mm (0.002 in.). Do not force bearing into housing.
NOTE: A replacement service spindle assembly uses a retaining
ring (E) to hold the spindle parts together during shipping. Remove
and discard this retaining ring (E) before installation if a service
assembly is used.
Install a new lower bearing and spacer on the spindle shaft.
-
Install the spindle shaft, lower bearing and spacer into the
spindle housing.
-
Install the upper bearing.
-
Install retaining ring.
-
Install pulley, spacer, washer, and nut. Tighten nut to specifications.
| Item | Measurement | Specification |
|
Spindle Nut | Torque | 115 N·m (85 lb-ft) |
-
Grease the spindle lubrication fitting (K). (See Lubricating
Points in the SERVICE LUBRICATION Section.)
-
Install mower blade, blade washers and blade assembly with blade
bolt. Tighten bolt to specifications.
| Item | Measurement | Specification |
|
Mower Deck Blade Bolt | Torque | 163 N·m (120 lb-ft) |
