Assemble Machine

  1. Place pallet on flat, level surface, with enough room to work safely. Remove pallet from work area after dismantling to prevent injuries from falls, nails, and splinters.

  2. Remove plastic cover from machine.

  3. IMPORTANT: Avoid damage! If using an overhead hoist to raise front of machine, do not hook to the steering wheel, operator’s platform, or any other location that is not a part of the structural frame!

    TCT009073
    TCT009073-UN-30OCT13

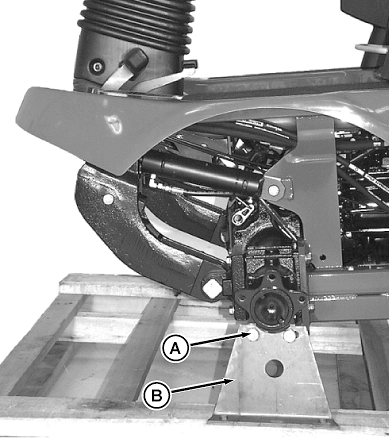

    Using a floor jack under the front transaxle housing, take the weight off of the front axle until the lug bolts and washers (A) can be removed from the shipping brackets (B).


  4. Remove four lug bolts and washers from left and right side of front axle.

  5. Remove shipping brackets from left and right side of shipping container.

  6. Lift front of machine high enough to install front wheels.

  7. Locate bag of parts. Remove bag from machine and take out six lug bolts and six lock washers.

  8. Install seat and power outlet.

  9. TCT009074
    TCT009074-UN-30OCT13

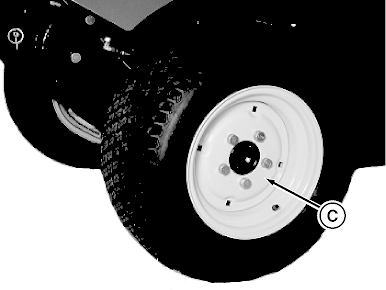

    Install wheels onto axle hubs with valve stems facing outward. Make sure there is a washer installed on each wheel bolt, and install bolts into reinforcement plate (C), wheel, and hub. Tighten bolts to 225 N·m (165 lb.-ft.).


  10. Lower machine off of floor jack.

  11. TCT009075
    TCT009075-UN-30OCT13

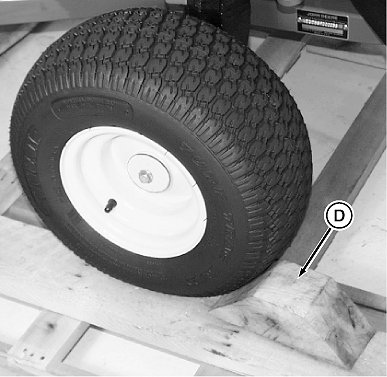

    Using a pry bar and hammer, remove the wheel blocks (D) from behind the left and right side rear tires.


  12. Cut shipping straps holding rear axle to pallet.

  13. Drive machine straight off of pallet.
