Z900B and Z900M Series

TCAL43451-UN-21MAR13

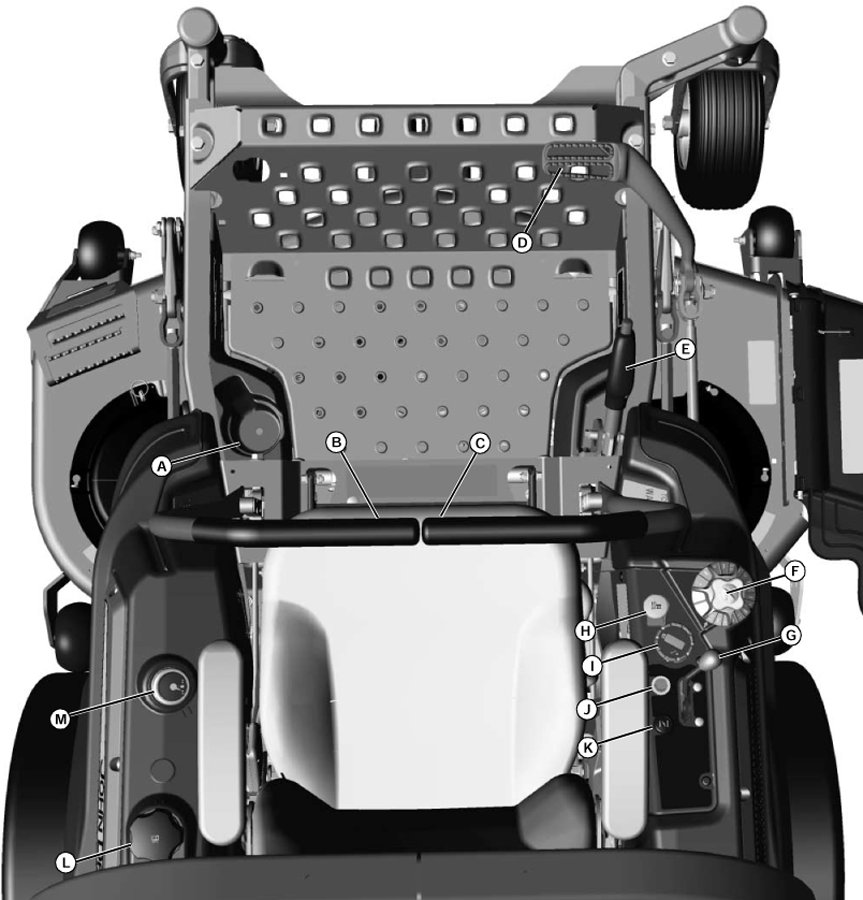

Z900B Series shown.

A - Beverage Holder

B - Left Motion Control Lever

C - Right Motion Control Lever

D - Deck Height Adjustment Pedal

E - Park Brake Lever

F - Height of Cut / Transport Lock Knob

G - Engine Speed Control Lever

H - PTO Engagement Knob

I - Hourmeter

J - Ignition Key Switch

K - Carburetor Choke Knob (not used on EFI engines)

L - Fuel Tank Cap

M - Fuel Level Gauge
