Using the Comfort and Convenience Package Controls (Z900R Series)

NOTE: Per design, the deck will lower if the lift button is held for more than 12 seconds or the machine is turned off.


Power Deck Lift

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. TCAL43464
    TCAL43464-UN-21MAR13

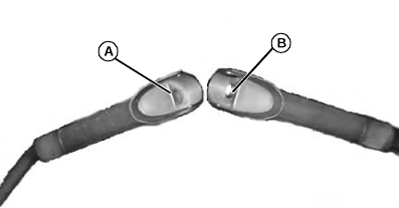

    Push button (A) on left motion control lever to raise mower deck.



PTO Shut Off

NOTE: Once PTO has been shut off using the button the PTO switch must be pushed down and pulled up again to engage PTO.

  • Push button (B) on right motion control lever to shut off PTO.

BB87125,00011E8-19-20130604
