Lubricating Mulch-On-Demand (MOD) Baffle Pivot Bushings

TCAL43498
TCAL43498-UN-21MAR13

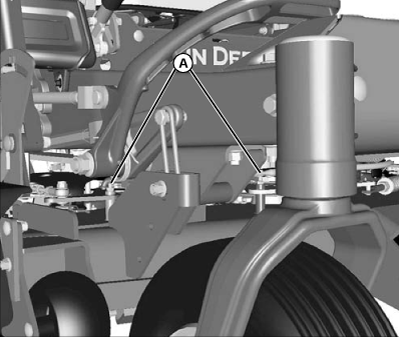

  1. On right front of machine, lubricate two grease fittings (A) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease.

  2. TCAL43499
    TCAL43499-UN-21MAR13

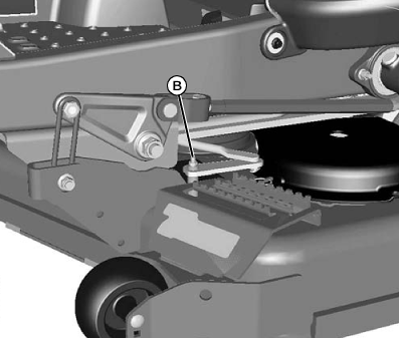

    On left front of machine, lubricate grease fitting (B) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease.

BB87125,0001208-19-20130604
