Engine Oil

TCAL43502-UN-21MAR13

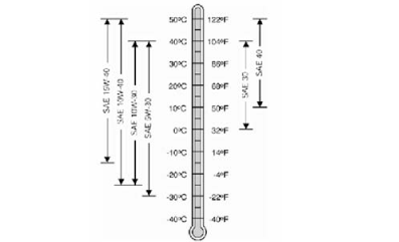

Oil Viscosities for Air Temperature Ranges

Use oil viscosity based on the expected air temperature range during the period between oil changes.

John Deere TURF-GARD™ is preferred:

The following oils are also recommended:

• John Deere Plus-4™
• John Deere Plus-50™ II

Other oils may be used if they meet one or more of the following:

• ILSAC GF-5
• API Service Category SN
• API Service Category SM
• API Service Category SL
• API Service Category SJ
• ACEA Oil Sequence A3
• ACEA Oil Sequence A2
• ACEA Oil Sequence A1
