Transmission and Hydraulic Oil

NOTE: Tractor is filled with John Deere High Viscosity Hy-Gard™ (J20C) transmission oil at the factory.

Do not mix oils.

Do not use type “F” automatic transmission fluid, J20D Low Viscosity Hy-Gard™, or Bio Hy-Gard™.

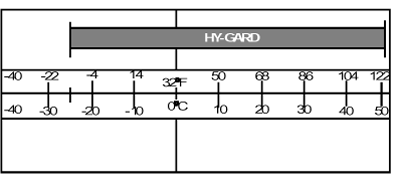

TCAL43538-UN-21MAR13

Use the following oil viscosity based on the air temperature range. Operating outside of the recommended oil air temperature range may cause premature hydrostatic transmission failure.

John Deere Hy-Gard™ (J20C) transmission oil is specially formulated to provide maximum protection against mechanical wear, corrosion, and foaming.
